Oxygen Analyzer for welding

type Pro Ox 100

  • Very fast response time
  • Integrated automatic pump
  • Measuring range 0,01 - 21,00%  O2
  • Automatic calibration
  • USB interface

 DWT PipeTools

Item number: RG350140

Request Online Live Demo
The PRO OX-100 programmable handheld oxygen analyzer for welding is designed to give operators the most precise oxygen level readings possible. Internationally renowned for its highly advanced features and low-cost, this Oxygen Analyzer for welding  with an internal pump accurately measures down to 0.01% (100 ppm) resolution, making it ideal for purging and other welding applications. Great pride goes into manufacturing the CE approved PRO OX-100 in the USA at the Aquasol® Corporation’s ISO Certified Factory.
 The PRO OX-100 comes equipped with many advanced features such as its data logging capabilities, which allow operators to create permanent records of real time data (at 15 second intervals) and export up to 50 data points to Microsoft® Excel and plain text format. The Oxygen Analyzer for welding  also offers a built-in, programmable multi-language feature with on-screen instructions that are available in English, Spanish, German, and Portuguese. Together with different voltage and frequency specifications and compatibilities, the PRO OX-100 is the most Oxygen Analyzer for welding  available on the global market today.
Oxygen Analyzer for welding Pro Ox 100

Measuring range
0,01 - 21,00 % O2
Calibration
20,9 %
Gas for calibration
Environmental air
Response time
<15 seconds
Warm-up time
Irrelevant
Substantial humidity
0 - 95 % non-condensing
Operating temperature
0° - 50°C
Storage temperature
3° - 20° C
Sample flow
1.0 LPM max.
Proofe pressure
10 PSI
Power
9V NiMh battery
Power duration
Up to 2 hours in trial mode
Sensor type
Electrochemical oxygen sensor
Sensor life
12 months
Recommended calibration interval
weekly, depending on use-frequency
PC interface
USB Type B

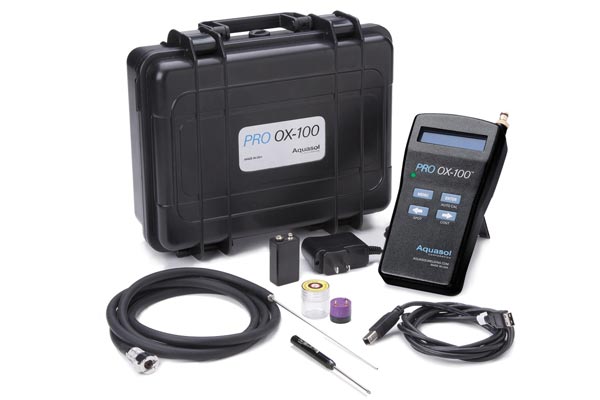

  • Pro Ox 100 oxygen analyzer with sensor
  • Transport case
  • 1.5 m hose with quick coupling
  • Stainless steel measuring probe
  • Rechargeable battery with charger
  • USB cable
  • Screwdriver
Flyer Oxygen Analyzer for welding Pro Ox 100

DOWNLOAD PDF
