Pipe Chain Clamp single
Pipe Chain Clamp single

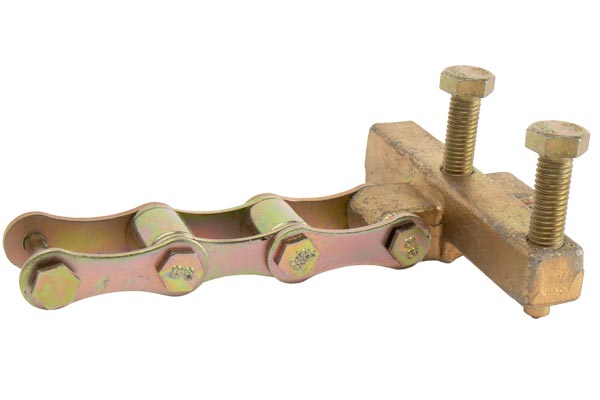

3-link chain with jack-bar
3-link chain with jack-bar
Swivel for Pipe Chain Clamp single
Swivel for Pipe Chain Clamp single
Pipe Chain Clamp single
Pipe Chain Clamp single
3-link chain with jack-bar
Swivel for Pipe Chain Clamp single

Pipe Chain Clamp single

Fast and safe pipe Alignment

  • Clamping range 8 - 60"
  • Max. wallthickness: 12,7 mm
  • By removing the chain the links und jackbars the
    chain adjusts to the several pipe diameters
  • Suitable for pipe-pipe, pipe-T-piece, pipe-bend
    and pipe-flange
  • Available in stainless steel and steel


 DWT PipeTools


Request Online Live Demo

Our single pipe chain clamps can adjust and align pipes with a wall-thickness up to 12,7 mm. Pipe Chain Clamps can be modified to smaller or larger Pipe dimensions simply by changing the number of Chain Links and Jack-Bars and are available with a single chain or a double chain.
The weight of the Single Pipe Chain Clamp is from 9,3 kg up to 33,1 kg. The Single Chain Clamp is suitable for pipe-pipe, pipe-T-piece, pipe-bend and pipe-flange.
  • 3-link chain with jack-bar (177 mm length)
  • 2-link chain with jack-bar (137 mm length)
  • Swivel
  • 2-link chain
  • 3-link chain
Flyer Pipe Chain Clamp single

DOWNLOAD PDF

Product overview

Part No.
Stainless Steel
Part No.
Steel
Number jack-bars
Range OD
Weight
1219157
1350040
5
8-10" (203-254 mm)
8,3 kg
1219158
1350041
6
8-12" (203-304 mm)
9,5 kg
1219159
1350042
7
8-16" (203-406 mm)
10,6 kg
1219160
1350043
9
8-20" (203-508 mm)
13,0 kg
1219161
1350044
11
8-24" (203-609 mm)
15,3 kg
1219162
1350045
13
8-28" (203-711 mm)
17,7 kg
1219163
1350046
14
8-32" (203-812 mm)
18,8 kg
1219164
1350047
16
8-36" (203-914 mm)
21,2 kg
1219165
1350048
18
8-40" (203-1.016 mm)
23,5 kg
1219166
1350049
19
8-44" (203-1.117 mm)
24,7 kg
1219167
1350050
21
8-48" (203-1.219 mm)
27,0 kg
1219168
1350051
23
8-52" (203-1.320 mm)
29,4 kg
1219169
1350052
25
8-56" (203-1.422 mm)
31,7 kg
1219170
1350053
26
8-60" (203-1.524 mm)
32,9 kg


Pipe Chain Clamp single Advantages

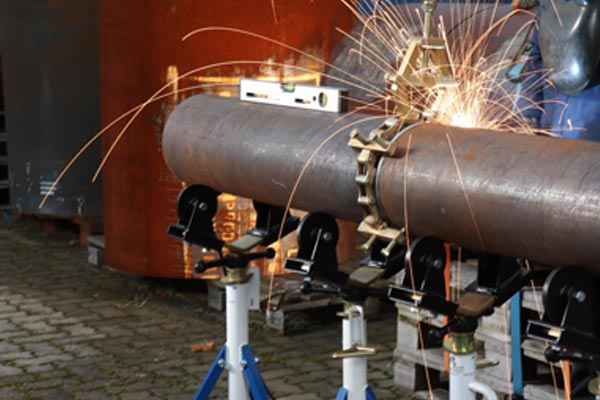

Perfect Alignment for Pipe Welding

Perfect Alignment for Pipe Welding

One clamp can fit a wide range of sizes and the entire circumference of the pipeline can be welded without removing the clamp.

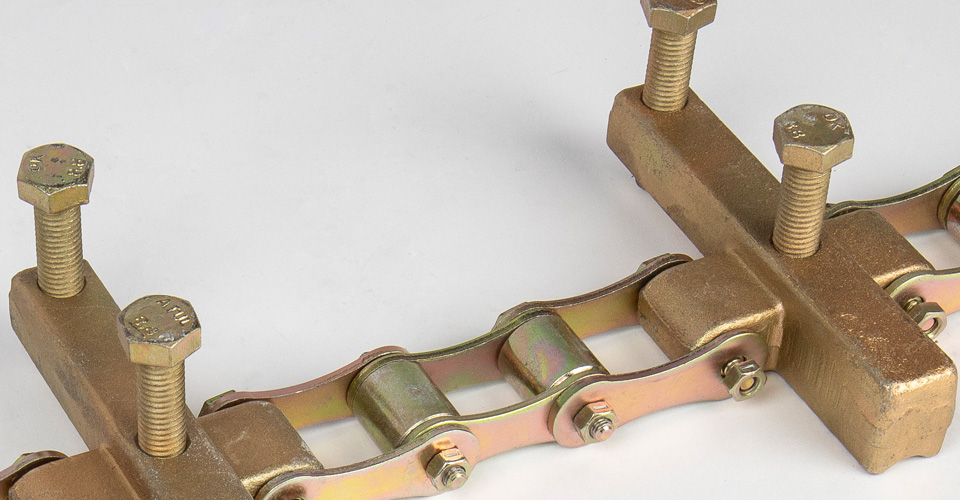

Easy adjustment

The chain can be adapted to the respective pipe dimension by removin the chain link and alignment levers.
Easy Adjustment
