Pipe Purging

With our pipe purge systems, aluminium pipe stoppers, oxygen monitors, welding masking tapes and water-soluble foils, you can quickly and easily form stainless steel tubes and thus protect the weld seam from oxidation and scaling.
  • Improved quality of the weld seams
  • Easy to handle
  • Preventing oxidation
  • High weld quality
DWT Pipe Purge System

DWT Pipe Purge System

Pipe Purge system for purging with protective gas

to DWT Purge System
Modular Pipe Purge System

Modular Pipe Purge System

Inflatable system for purging in orbital welding

to Pipe Purge System
DWT Purge Gas Saver

DWT Purge Gas Saver


Diameter from 300 mm


to Purge Gas Saver
Aluminium Pipe Stoppers

Aluminium Pipe Stoppers

Can be used to close pipelines up to 648 mm

to Pipe Stoppers
Oxygen Monitors

Oxygen Monitors

Oxygen monitors for measuring the residual oxygen in the forming gas

to Oxygen Monitors
Aquasol Pipe Purging Tools

Aquasol Pipe Purging Tools

Innovative solutions and products for the welding process

to Purging Tools

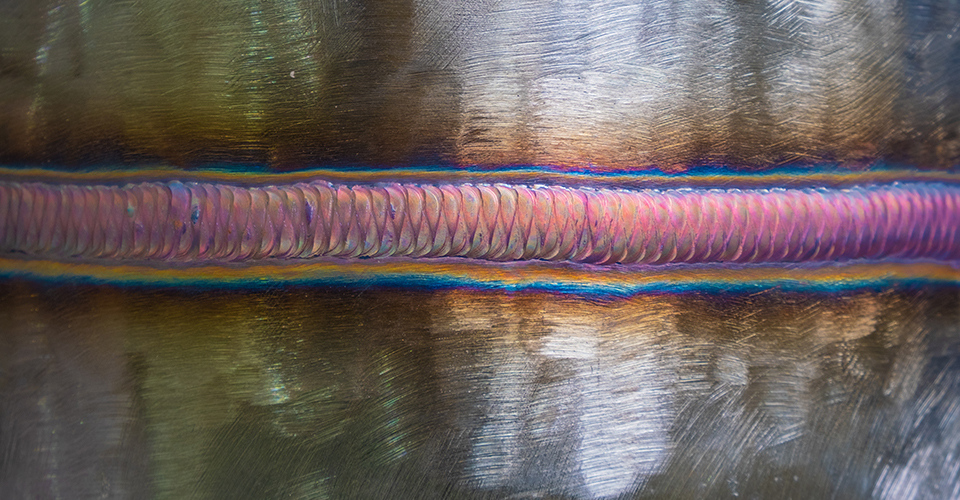

Weld Seam

Perfect Weld seam

High-quality surface condition of the root with regard to oxidation and root shaping.


OCCUPATIONAL SAFETY

Measures must be taken when welding complex materials to prevent the risk of ignitable gas mixtures and the uncontrolled ingress of unwanted air.


occupational safety
When welding stainless steel pipes, the pipe should be purged or shielded beforehand to ensure the corrosion resistance of the materials. The purpose of forming is to create or maintain a high-quality surface condition of the root with regard to oxidation and root shaping. If the purging process of stainless steel is carried out correctly, rework can become superfluous.
If welding is carried out without prior forming, the root can oxidize and the material of the workpiece becomes porous or rusty. In the case of materials such as titanium or magnesium, it is even necessary to form them in advance, as these materials are sensitive to gases.
Displacing the air and flushing the root area is called pipe purging. During cooling, flushing with the backing gas must be carried out until no further reaction with the air can take place.
When purging stainless steel pipes, you should follow a few guidelines. This is the only way to ensure your safety and achieve the best possible result.
When purging pipes, particular attention must be paid to the following:

     Lighter gases from above
     Introduce heavy gases from below
     The selection of the gas also depends on the position of the weld seam on the component

The formation process must include:

     Displacing the air in the root area before welding
     Maintaining during welding
     Flushing on cooling after welding until no more oxidation occurs.
     In the case of stainless steels, this temperature is approx. 250 °C
     The three steps must also be carried out during tacking, since the oxides are not removed when the tacking points are welded over.
