Fast and secure solutions for leaks or damages in pipeline work

  • For on shore installation
  • For off shore installation, with zinc anodes and marine epoxy coating
  • Weldable, with heat insulating gaskets
  • with grider rings, if required

 DWT PipeTools


Request Online Live Demo

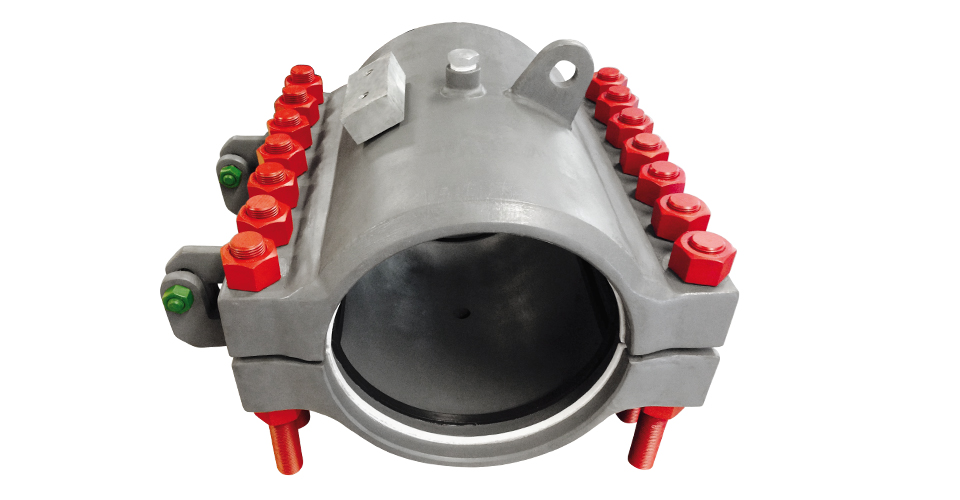

In the oil and gas industry, boltable pipeline leak repair clamps provide a fast and secure solutions for leaks or damages in pipeline work. They can be used for high-and low-pressure pipeline repair as well as for high and low temperature pipelines. They are applicable to Oil, Gas, Chemicals, Steam and Water.
The clamp halves are joined with bolts to create a highintegrity pressure vessel around the damaged or leaking pipe. Sealing is achieved using elastomer seals of the highest quality, carefully selected for compatibility with the pipeline fluid and operating temperature. Additionally, after installation, the split sleeves can be welded to provide a permanent repair. This welding process can be completed while the pipeline is in operation, ensuring a completely sealed connection.
Flyer Pipeline Leak Repair Clamp

DOWNLOAD PDF

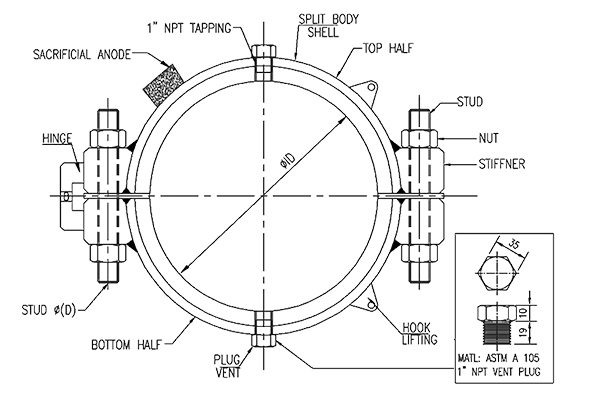

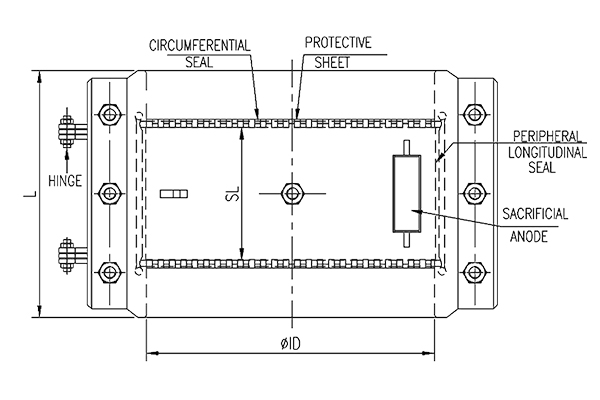

Standard Clamp Components

 Body (shell)
A516 GR. 70
 Stud Bolts
A193 GR. B7
 Nuts
A194 GR. 2H
 Gaskeks
NBR or Viton
 Coating
(Marine) Epoxy


Pipeline Leak Repair Clamp Advantages
Pipeline Leak Repair Clamp - Typical Applications

Typical applications:

  • Internal and external Corrosion
  • Mechanical Damage
  • Crack
  • Pitting
  • Rupture
  • Pipe Replacement
  • Defective Welds
  • Reinforcement
  • Repair of leaking flanges

Safety

The clamps are fully compensatory pressure vessels, hydrostatically tested to 1.3 times the rated working pressure, as per ASME Section VIII Div.1 clause UG-99. All clamps are equipped with either a 1/2” or 1” NPT vent port, depending on size and client requirements.
Pipeline Leak Repair Clamp - Safety
Pipeline Leak Repair Clamp - Easy to install

Easy to install and maintain

All Pipeline Leak Repair Clamps are designed to be installed using commonly available tools and can be readily repairedin the field, including full seal replacement.

Economy & Ergonomics

Pipeline Leak Repair Clamps are designed utilizing the latest technology, which allows for the optimization of design techniques and materials. This results in lower weight, reduced bending tendencies and greater economic efficiency.
Pipeline Leak Repair Clamp - Economy & Ergonomics
Pipeline Leak Repair Clamp - For sour environment

For sour environment

This type of split sleeve is designed for use in hydrogen sulfide (H2S) bearing hydrocarbon service. For sour services, the body material will comply with NACE MR0175.

Weldable split sleeves

All clamps can be fully prepared for welding after installation (welding procedure available upon request). Heat insulators, positioned parallel to the seals, protect the seals from heat during the welding of the sleeves to the pipe.
Pipeline Leak Repair Clamps - Weldable split leeves
