The PRO OX-100 programmable handheld oxygen analyzer for welding is designed to give operators the most precise oxygen level readings possible. Internationally renowned for its highly advanced features and low-cost, this Oxygen Analyzer for welding with an internal pump accurately measures down to 0.01% (100 ppm) resolution, making it ideal for purging and other welding applications. Great pride goes into manufacturing the CE approved PRO OX-100 in the USA at the Aquasol® Corporation’s ISO Certified Factory.

The PRO OX-100 comes equipped with many advanced features such as its data logging capabilities, which allow operators to create permanent records of real time data (at 15 second intervals) and export up to 50 data points to Microsoft® Excel and plain text format. The Oxygen Analyzer for welding also offers a built-in, programmable multi-language feature with on-screen instructions that are available in English, Spanish, German, and Portuguese. Together with different voltage and frequency specifications and compatibilities, the PRO OX-100 is the most Oxygen Analyzer for welding available on the global market today.

Oxygen Analyzer for welding Pro Ox 100

Measuring range

0,01 - 21,00 % O₂

Calibration

20,9 %

Gas for calibration

Environmental air

Response time

<15 seconds

Warm-up time

Irrelevant

Substantial humidity

0 - 95 % non-condensing

Operating temperature

0° - 50°C

Storage temperature

3° - 20° C

Sample flow

1.0 LPM max.

Proofe pressure

10 PSI

Power

9V NiMh battery

Power duration

Up to 2 hours in trial mode

Sensor type

Electrochemical oxygen sensor

Sensor life

12 months

Recommended calibration interval

weekly, depending on use-frequency

PC interface

USB Type B

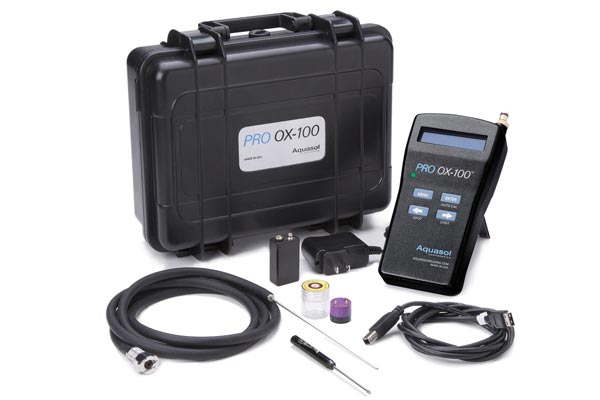

Pro Ox 100 oxygen analyzer with sensor
Transport case
1.5 m hose with quick coupling
Stainless steel measuring probe
Rechargeable battery with charger
USB cable
Screwdriver

Flyer Oxygen Analyzer for welding Pro Ox 100

DOWNLOAD PDF
