Hydraulic External Pipe Clamps

For pipes up to 80 inch

  • 90% of the root can be welded
  • Pipe range OD: 12 - 80 inch
  • Available in a medium, heavy and
    heavy-duty version
  • Edge misalignment can be eliminated by
    means of jackscrews
  • The air gap can be adjusted by means of chisel

 DWT PipeTools

Request Online Live Demo

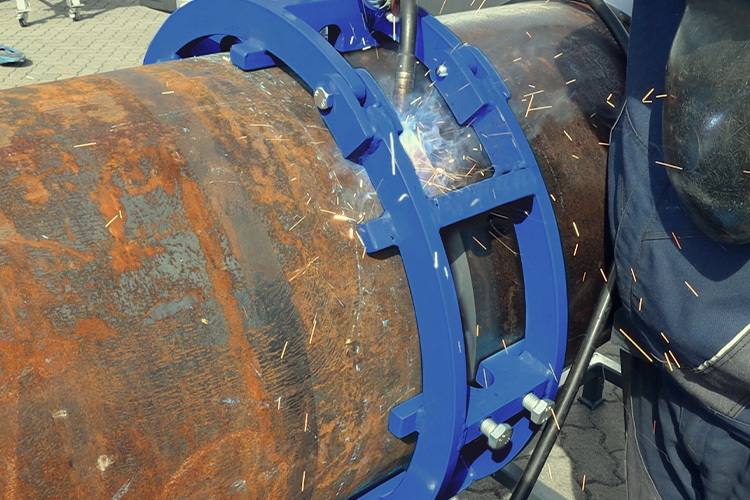

Our Hydraulic External Pipe Clamps have a wide gap, which allows the welding of the root up to 90% before removing the clamp. Edge misalignment can be eliminated by means of jackscrews or a wedge which is placed under the alignment bridge.
The air gap can be adjusted by means of chisel. The hydraulic cylinder, which is available as an option, operates in all positions and can be used for all pipe diameters.
Part No.
Pipe size
Diameter OD
Weight
11 001 0323
DN 300
12" (323 mm)
20,0 kg
11 001 0355
DN 350
14" (355 mm)
21,0 kg
11 001 0406
DN 400
16" (406 mm)
21,5 kg
11 001 0457
DN 450
18" (457 mm)
24,0 kg
11 001 0508
DN 500
20" (508 mm)
28,5 kg
11 001 0610
DN 600
24" (610 mm)
30,0 kg
11 001 0660
DN 650
26" (660 mm)
32,5 kg
11 001 0711
DN 700
28" (711 mm)
34,0 kg
11 001 0765
DN 750
30" (762 mm)
38,0 kg
11 001 0813
DN 800
32" (813 mm)
39,5 kg
11 001 0864
DN 850
34" (864 mm)
44,0 kg
11 001 0914
DN 900
36" (914 mm)
53,0 kg
11 001 1016
DN 1.000
40" (1.016 mm)
60,0 kg
11 001 1067
DN 1.050
42" (1.067 mm)
66,0 kg
11 001 1118
DN 1.110
44" (1.118 mm)
71,0 kg
11 001 1220
DN 1.200
48" (1.219 mm)
77,0 kg
11 001 1321
DN 1.300
52" (1.320 mm)
79,0 kg
11 001 1420
DN 1.400
56" (1.420 mm)
82,0 kg
11 001 1520
DN 1.500
60" (1.520 mm)
84,0 kg
11 001 1620
DN 1.600
64" (1.620 mm)
95,0 kg
11 001 1720
DN 1.700
68" (1.720 mm)
102,0 kg
11 001 1820
DN 1.800
72" (1.829 mm)
104,0 kg
11 001 1920
DN 1.900
76" (1.920 mm)
108,0 kg
11 001 2020
DN 2.000
80" (2.032 mm)
115,0 kg


Part No.
Pipe size
Diameter OD
Weight
11 SK1 0711
DN 700
28" (711 mm)
95,0 kg
11 SK1 0762
DN 750
30" (762 mm)
100,0 kg
11 SK1 0813
DN 800
32" (813 mm)
106,0 kg
11 SK1 0864
DN 850
34" (864 mm)
115,0 kg
11 SK1 0914
DN 900
36" (914 mm)
123,0 kg
11 SK1 1016
DN 1.000
40" (1.016 mm)
130,0 kg
11 SK1 1067
DN 1.050
42" (1.067 mm)
135,0 kg
11 SK1 1118
DN 1.100
44" (1.118 mm)
138,0 kg
11 SK1 1168
DN 1.150
46" (1.168 mm)
141,0 kg
11 SK1 1220
DN 1.200
48" (1.219 mm)
145,0 kg
11 SK1 1320
DN 1.300
52" (1.321 mm)
149,0 kg
11 SK1 1420
DN 1.400
56" (1.422 mm)
153,0 kg
11 SK1 1520
DN 1.500
60" (1.524 mm)
160,0 kg
11 SK1 1620
DN 1.600
64" (1.626 mm)
170,0 kg
11 SK1 1720
DN 1.700
68" (1.720 mm)
179,0 kg
11 SK1 1820
DN 1.800
72" (1.820 mm)
185,0 kg
11 SK1 1920
DN 1.900
76" (1.920 mm)
195,0 kg
11 SK1 2020
DN 2.000
80" (2.020 mm)
210,0 kg


Part No.
Pipe size
Diameter OD
Weight
11 SHD 0610
DN 600
24" (610 mm)
120,0 kg
11 SHD 0660
DN 650
26" (660 mm)
130,0 kg
11 SHD 0711
DN 700
28" (711 mm)
135,0 kg
11 SHD 0762
DN 750
30" (762 mm)
140,0 kg
11 SHD 0813
DN 800
32" (813 mm)
150,0 kg
11 SHD 0864
DN 850
34" (864 mm)
155,0 kg
11 SHD 0914
DN 900
36" (914 mm)
162,0 kg
11 SHD 1016
DN 1.000
40" (1.016 mm)
170,0 kg
11 SHD 1067
DN 1.050
42" (1.067 mm)
175,0 kg
11 SHD 1118
DN 1.100
44" (1.118 mm)
180,0 kg
11 SHD 1220
DN 1.200
48" (1.220 mm)
190,0 kg
11 SHD 1320
DN 1.300
52" (1.320 mm)
195,0 kg
11 SHD 1420
DN 1.400
56" (1.420 mm)
210,0 kg
11 SHD 1520
DN 1.500
60" (1.520 mm)
220,0 kg
11 SHD 1620
DN 1.600
64" (1.620 mm)
247,0 kg
11 SHD 1720
DN 1.700
68" (1.720 mm)
260,0 kg
11 SHD 1820
DN 1.800
72" (1.820 mm)
280,0 kg




YouTube

Your privacy settings on this website prevent the playing of YouTube videos!
Please allow viewing of YouTube in the FUNCTIONAL group.

ALLOW YOUTUBE
Further information on data protection can be found in our Privacy Policy.
Hydraulic External Pipe Clamps - Versions
Medium Hydraulic External Pipe Clamp

Medium Hydraulic External Pipe Clamp

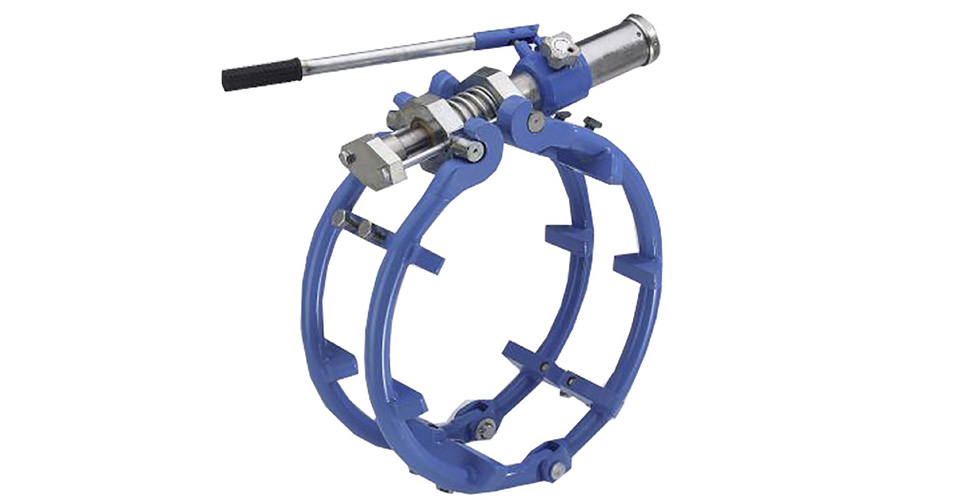

The medium external pipe clamps have a wide gap, allowing welding of the
root up to 90% before removing the clamp. Edge misalignment can be eliminated
by means of jackscrews or a wedge which is placed under the alignment bridge.

Heavy Duty Hydraulic External Pipe Clamp

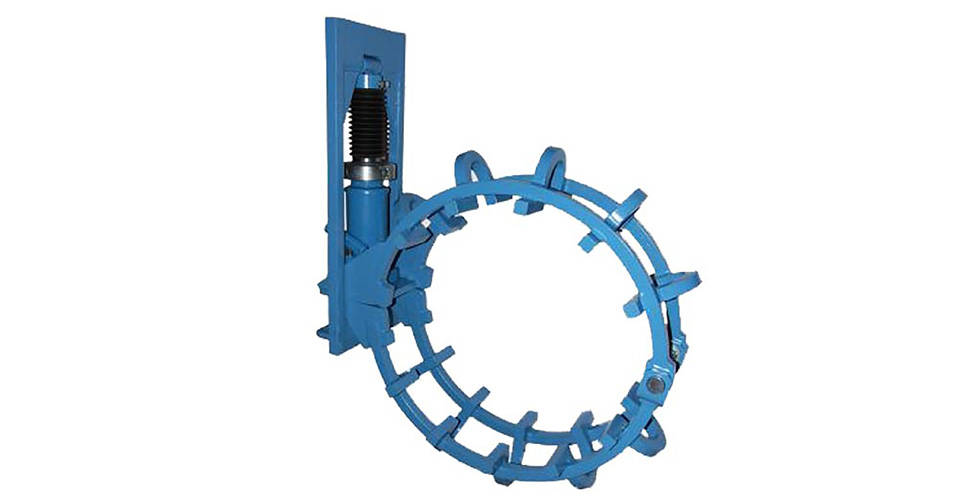

Heavy Hydraulic External Pipe Clamp. The hydraulic cylinder works in vertical position and can be exchanged easily, if necessary. The alignment bridges have a widegap, allowing to weld the root up to 90% before removing the clamp. Hydraulic jack 10 t. For gas pipelines (fine-grained steel)  and for thick-walled pipes made of study flat steel.
Heavy Duty Hydraulic External Pipe Clamp
Super Heavy Duty Hydraulic External Pipe Clamp

Super Heavy Duty Hydraulic External Pipe Clamp

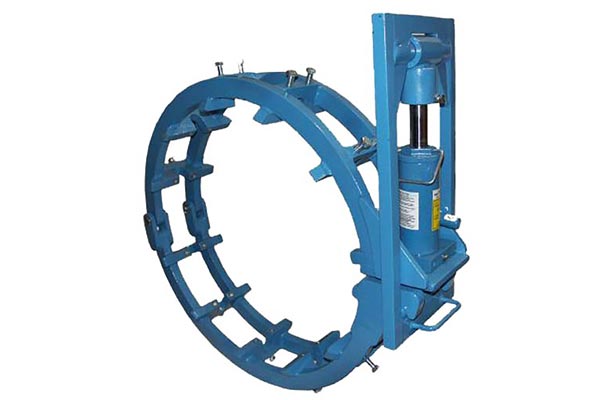

The heavy-duty hydraulic external pipe clamp for pipe from 20 - 64 inch has an integrated hydraulic jack, brigde with screws offer a perfect acces to the welding gap. Aproxx. 90% dof the root pass can welded without loosening the clamp. All bridges and rings are made of high-quality steel and are specially designed for welding thick-walled pipes.
