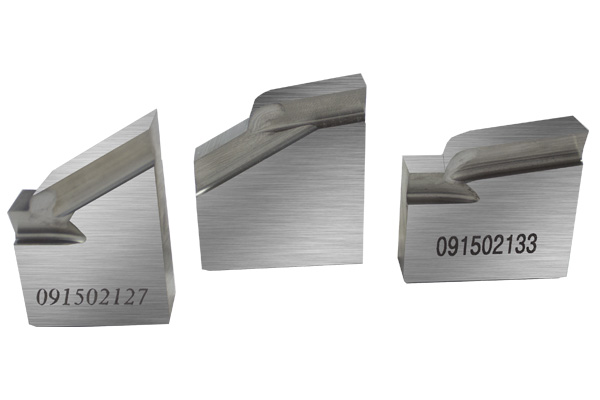

Tool bits for J-prep
Tool bits for J-prep
Tool bits for J-prep

Tool bits for J-prep

  • Perfect Weld Preparation
  • For all DWT bevel machines
  • Customized Bits
  • Highest Quality
  • Made in Germany


 DWT PipeTools


Request Online Live Demo
  • J-Prep blade according to DIN 2559-4
  • DIN 2559-3
  • DBS 34-R3
  • DBS34-R5
  • Customized tool bits on request
Flyer Tool bits for J-prep

DOWNLOAD PDF

Product overview

Item No.
Description
Suitable for
091502160
DIN 2559-4 (30°/R6/8°)
MF3-25, MF4, MF3iw, MF4-R
091502148
DIN 2559-3 (0°/R6/8°)
MF3-25, MF4, MF3iw, MF4-R
091502154
DBS 34-R3 (0°/45°/R9/8°)
MF3-25, MF4, MF3iw, MF4-R
091502159
DBS 34-R5 (0°/R5/30°)
MF3-25, MF4, MF3iw, MF4-R
091502134
DIN 2559-4 (30°/R6/8°)
MF3i, MF4i, MF5i, MF6i-50
091502133
DIN 2559-3 (0°/R6/8°)
MF3i, MF4i, MF5i, MF6i-50
091502128
DBS 34-R3 (0°/45°/R9/8°)
MF3i, MF4i, MF5i, MF6i-50
091502127
DBS 34-R5 (0°/R5/30°)
MF3i, MF4i, MF5i, MF6i-50
