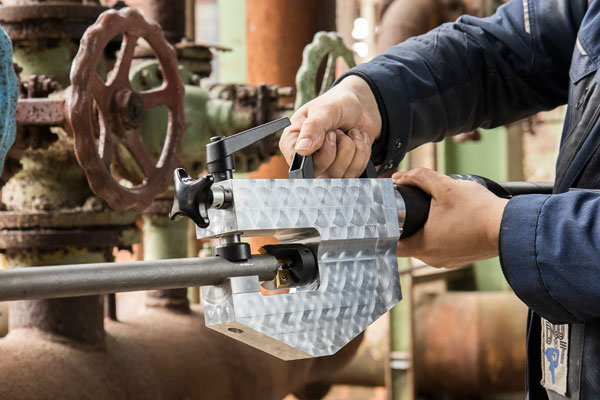

Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25
Pipe Beveler MF2-25

Pipe Beveler MF2-25

Clamping range OD-OD:
0,787- 1,496"

  • Working Range ID-OD: 0,314 - 1,496" (12,5 - 38 mm)
  • Pipe wall thickness: max. 15 mm
  • Perfect pipe beveling and pipe edge preparation
  • Spark-free and low noise
  • High repeatability


 DWT PipeTools Made in Germany  DWT PipeTools Made in Germany  DWT PipeTools Made in Germany



Request Online Live Demo
The special versatility of the MF2-25 pipe beveling machine is characterised by the panel wall machining with indexable insert crown cutters up to a Ø 38.0 mm. The minimum panel wall width is only 40.0 mm.
Pipe Beveler MF2-25

Working range ID-OD
0,492" - 1,496" (12,5 - 38 mm)
Clamping range OD-OD
0,787" - 1,496" (20 - 38 mm)
Max. wall-thickness
0,59" (15 mm)
Feed
0,88" (25 mm)
Weight with pneumatic motor
6,4 kg
Weight with electric motor
7,6 kg
Weld prep
facing, V & J-prep, counter boring
Materials
steel, stainless steel, duplex, high-alloyed
Tooling
tool bits, TiN inserts, custom bits
Body
lightweight housing

MF2-25 with pneumatic motor

Power
850 W (1,2 HP)
Air pressure
6 bar (87psi)
Air consumption
0,96 m³/min (33,9 cfm)
Air hose connection
1/4"
Features
speed control

MF2-25 with electric motor

Power consumption
1.500W (110V/230V)
Features
restart and overload protection, speed adjustment, torque control


Flyer Pipe Beveler MF2-25

DOWNLOAD PDF

Product overview

Item No.
Description
091504433
Pipe Beveler MF2-25 with pneumatic motor
091504434
Pipe Beveler MF2-25 with electric motor 230V


YouTube

Your privacy settings on this website prevent the playing of YouTube videos!
Please allow viewing of YouTube in the FUNCTIONAL group.

ALLOW YOUTUBE
Further information on data protection can be found in our Privacy Policy.
Pipe Beveler MF2-25 Advantages
Beveling of membrane walls

Beveling of membrane walls

he big advantage of the MF2-25 is that membrane walls down to a size of Ø 20mm can be bevelled with tool tip crown milling heads. The minimum membrane wall width is only 37,0 mm.

Ergonomic

Due the use of aluminium alloys the machine
has a low weight and can be easily operated by one person.
Ergonomic Pipe Beveler
Tooling

Various Tools

Tool bits, insert holders and tools holders  with special tools can be used for perfect weld edge preparation.
Matching it
Inserts Pipe Beveler
Inserts
Double-sided TiN inserts provide low costs due to longevity and less heat development

Inserts
Inserts Holders Pipe Beveler
Inserts Holders
All holders are made in Germany and produced of high-quality tools steel.


Insert Holders
Boiler Tube Fin Removal Tool
Boiler Tube Fin Removal Tool
The fin removal tools are used for weld prep of boiler tube panels
