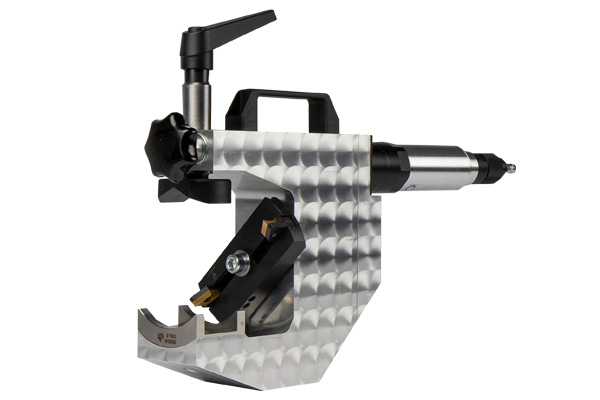

Pipe Beveler MF4
Pipe Beveler MF4
Pipe Beveler MF4
Pipe Beveler MF4
Pipe Beveler MF4
Clamping range OD-OD:
1,496 - 5,236"
- Working Range ID-OD: 0,984 - 5,236" (25 - 133 mm)
- Pipe wall thickness: max. 25 mm
- Perfect pipe beveling and pipe edge preparation
- Spark-free and low noise
- High repeatability
Request Online Live Demo
The largest externally clamping pipe beveling machine MF4 can also be equipped with an angled drive on request.
This allows the machine to be used in special situations that require a compact design in addition to a large working and clamping range.
Pipe Beveler MF4
Working range ID-OD
0,984" - 5,236" (25 - 133 mm)
Clamping range OD-OD
1,496" - 5,236" (38 - 133 mm)
Max. wall-thickness
0,984" (25 mm)
Feed
0,590" (15 mm)
Weight with pneumatic motor
13 kg
Weight with electric motor
14,2 kg
Weld prep
facing, V & j-prep, counter boring
Materials
steel, stainless steel, duplex, high-alloyed
Tooling
tool bits, TiN inserts, custom bits
Body
lightweight housing
MF4 with pneumatic motor
Power
850 W (1,2 HP)
Air pressure
6 bar (87psi)
Air consumption
0,96 m³/min (33,9 cfm)
Air hose connection
1/4"
Features
speed control
MF4 with electric motor
Power consumption
1.500W (110V/230V)
Features
restart and overload protection, speed adjustment, torque control
Product overview
Item No.
Description
091500360
Pipe Beveler MF4 with pneumatic motor
091500383
Pipe Beveler MF4 with electric motor 230V
YouTube
Your privacy settings on this website prevent the playing of YouTube videos!Please allow viewing of YouTube in the FUNCTIONAL group.
ALLOW YOUTUBE
Further information on data protection can be found in our Privacy Policy.
Pipe Beveler MF4 Advantages
Maximum Productivity
Special developed inserts as cutting toolscan be used for all types of beveling.
Ergonomic
Due the use of aluminium alloys the machinehas a low weight and can be easily operated by one person.
Various Tools
Tool bits, insert holders and tools holders with special tools can be used for perfect weld edge preparation.Matching it
Inserts
Double-sided TiN inserts provide low costs due to longevity and less heat developmentInserts
Inserts Holders
All holders are made in Germany and produced of high-quality tools steel.Insert Holders
Boiler Tube Fin Removal Tool
The fin removal tools are used for weld prep of boiler tube panelsRemoval Tool
Easy to fit tool
Easy to fit is the new welding solution for pipes and fittings - the future of pipe weldingEasy to fit
