For pipes up to 6,63" ( 168,3 mm)

  • Working Range ID-OD: 1,57 - 6,63" (40 - 168,3 mm)
  • Clamping Range ID-ID: 1,57 - 5,98" (40 - 152 mm)
  • Pipe wall thickness: max. 25 mm
  • Perfect pipe beveling and pipe edge preparation
  • Spark-free and low noise
  • High repeatability


 DWT PipeTools Made in Germany  DWT PipeTools Made in Germany  DWT PipeTools Made in Germany



Request Online Live Demo

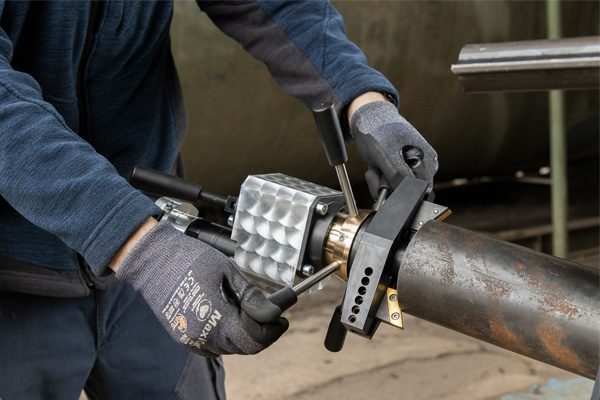

With the MF3i pipe beveling machine, pipes up to OD 168,3 mm can be processed for weld edge preparation.
The machine can be equipped with either a pneumatic or electric working motor. Thanks to its low weight of only 10 kg, this machine can be operated by only one person.

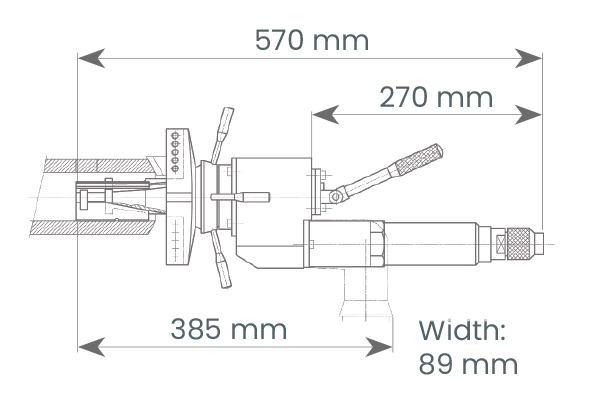

Pipe Beveling Machine MF3i

Working range ID-OD
1,57" - 6,63" (40 - 168,3 mm)
Clamping range OD-OD
1,57" - 5,98"  (40 - 152 mm)
Max. wall-thickness
0,98" (25 mm)
Feed
0,590" (15 mm)
Weight with pneumatic motor
10,3 kg
Weight with electric motor
11,5 kg
Weld prep
facing, V & J-prep, counter boring
Materials
steel, stainless steel, duplex, high-alloyed
Tooling
tool bits, TiN inserts, custom bits
Body
lightweight housing

MF3i with pneumatic motor

Power
850 W (1,2 HP)
Air pressure
6 bar (87 psi)
Air consumption
0,96 m³/min (33,9 cfm)
Air hose connection
1/4"
Features
speed control

MF3i with electric motor

Power consumption
1.500W (110V/230V)
Features
restart and overload protection, speed adjustment, torque control


Flyer Pipe Beveling Machine MF3i

DOWNLOAD PDF

Product overview

Item No.
Description
091502428
Pipe Beveling Machine MF3i, pneumatic motor
091502429
Pipe Beveling Machine MF3i, electric motor 230V




YouTube

Your privacy settings on this website prevent the playing of YouTube videos!
Please allow viewing of YouTube in the FUNCTIONAL group.

ALLOW YOUTUBE
Further information on data protection can be found in our Privacy Policy.
Pipe Beveling Machine MF3i Advantages
Elbow Beveling

Elbow beveling

Special inserts for internal clamping pipe beveling machine for elbow beveling

Ergonomic

Due the use of aluminium alloys the machine
has a low weight and can be easily operated by one person.
Ergonomic pipe beveling
Tooling

Various Tools

Tool bits, insert holders and tools holders  with special tools can be used for perfect weld edge preparation.
Matching it
Inserts Pipe Beveler
Inserts
Double-sided TiN inserts provide low costs due to longevity and less heat development

Inserts
Tool Holder
Tool Holder
All tool holders are manufactured from high quality premium tool steels with approved design.

Tool Holder
Elbow Beveling Tool
Elbow Beveling Tool
Special tool for beveling pipe bends and elbows



Elbow Beveling
