For pipes up to 12,75" (323,9 mm) / 18,11" (460 mm)

  • Working Range ID-OD: 3,94 - 12,75" / 18,11" (100 - 323,9 / 460 mm)
  • Clamping Range ID-ID; 3,94 - 12,60" / 16,54" (100 - 320 / 420 mm)
  • Pipe wall thickness: max. 30 mm / 25 mm
  • Perfect pipe beveling and pipe edge preparation
  • Spark-free and low noise
  • High repeatability


 DWT PipeTools Made in Germany  DWT PipeTools Made in Germany  DWT PipeTools Made in Germany

Review Pipe Beveling Machine MF5i


Request Online Live Demo

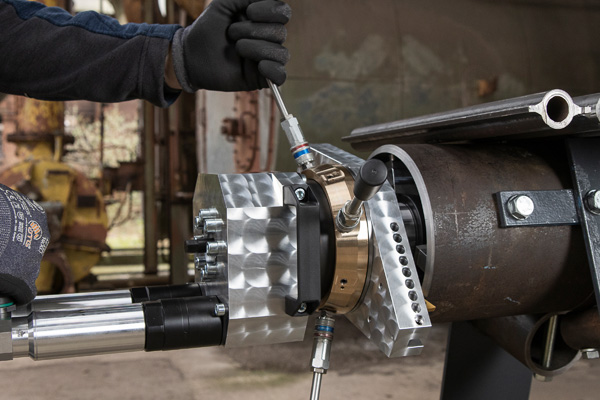

The MF5i pipe beveling machine processes pipes with an outer diameter of 100 mm to max. 323,9 mm.
Thanks to the high repeatability, quality and ergonomics, you increase your productivity and optimise the weld seam preparation.
Pipe Beveling Machine MF5i

Working range ID-OD
3,94 - 12,75" / 18,11" (100 - 323,9 / 460 mm)
Clamping range ID-ID
3,94 - 12,60" / 16,54" (100 - 320 / 420 mm)
Max. wall-thickness
1,18" (30 mm)
Feed
1,18" (30 mm)
Weight with pneumatic motor
23,8 kg
Weight with electric motor
29,0 kg
Weight with hydraulic motor
33,0 kg
Weld prep
facing, V & J-prep, counter boring
Materials
steel, stainless steel, duplex, high-alloyed
Tooling
tool bits, TiN inserts, custom bits
Body
lightweight housing

MF5i with two pneumatic motor

Power
1.700 W (2,3 HP)
Air pressure
6 bar (87 psi)
Air consumption
1,92 m³/min (70,4 cfm)
Air hose connection
3/8"
Features
speed control

MF5i with electric motor

Power consumption
2.300 W (110V/230V)
Features
speed adjustment, overload protection, blocking monitoring

MF5i with hydraulic motor

Power consumption
16.000 W (21,8 HP)
Air pressure
105 bar (1.523 psi)
Oil flow
50 l/min



Flyer Pipe Beveling Machine MF5i

DOWNLOAD PDF

Product overview

Item No.
Description
091506025
Pipe Beveling Machine MF5i with 2 pneumatic motors
091506027
Pipe Beveling Machine MF5i with electric motor 230V
091506029
Pipe Beveling Machine MF5i with hydraulic motor




YouTube

Your privacy settings on this website prevent the playing of YouTube videos!
Please allow viewing of YouTube in the FUNCTIONAL group.

ALLOW YOUTUBE
Further information on data protection can be found in our Privacy Policy.
Pipe Beveling Machine MF5i Advantages

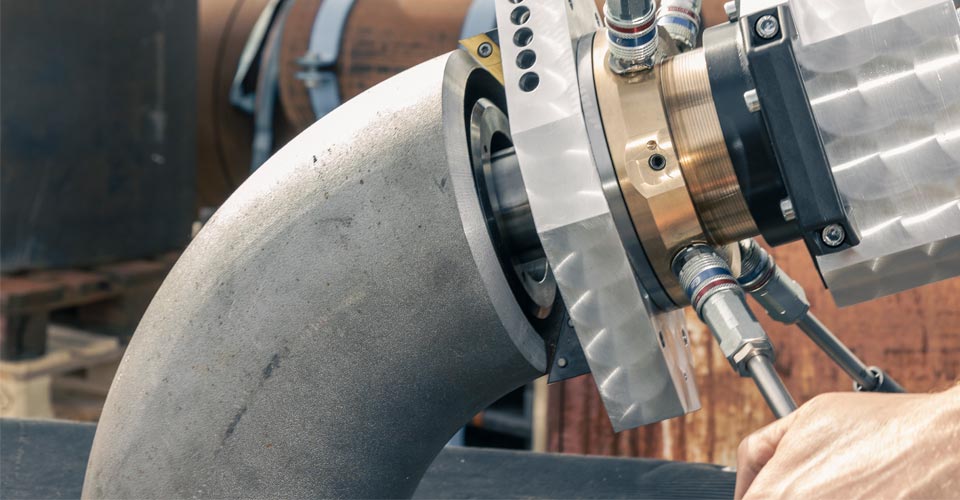

Elbow Beveling

Elbow beveling

Special inserts for internal clamping pipe beveling machine for elbow beveling

Hydraulic Motor

Optional available with hydraulic drive for the hardest requirements
Hydraulic pipe beveling
Tooling

Various Tools

Tool bits, insert holders and tools holders  with special tools can be used for perfect weld edge preparation.
Matching it
Inserts Pipe Beveler
Inserts
Double-sided TiN inserts provide low costs due to longevity and less heat development

to Inserts
Tool Holder
Tool Holder
All tool holders are manufactured from high quality premium tool steels with approved design.

to Tool Holder
Elbow Beveling Tool
Elbow Beveling Tool
Special tool for beveling pipe bends and elbows



to Elbow Beveling
