Pipe Bevel Cutting Machine Exact Pro Series 220
Pipe Bevel Cutting Machine Exact Pro Series 220
Pipe Bevel Cutting Machine Exact Pro Series 220

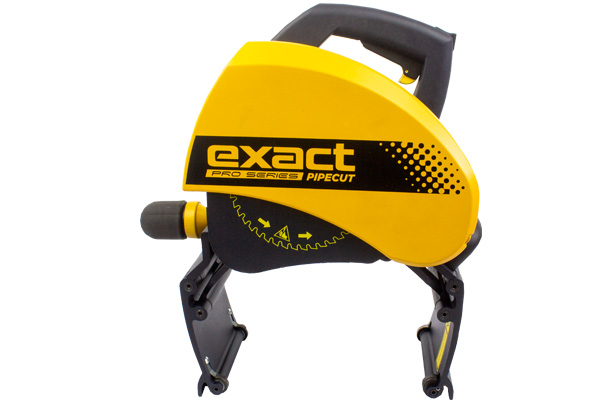

Exact Pro Series 220CB

Pipe Bevel Cutting Machine

  • Cutting and/or beveling of several types of pipes
  • Can be used with all saw blades
  • Range of use: OD 20 - 220 mm
  • Integrated laser for perfect cutting and beveling results
  • Optical display for optimum worker guidance


 Exact Pro Series

Item number: RG300093

Request Online Live Demo
Exact Cut+Bevel 220 Pro Series

Range of use
OD 0,8" - 8,6" (15-220 mm)
Max. wall thicknes
0,63" (16 mm) cast iron, 1,37" (35 mm) plastic
Weight
11,5 kg
Voltage
220 - 240 V
No-load speed
1.600 - 3.500 rpm
ø Blade
140 mm
Mounting bore
62 mm
  • Exact CB 220 Pro Series
  • Cut+Bevel diamond disc
  • Shoulder bag
  • 4 x pipe support
  • Insctructions
  • Allen keys 5 mm & 2 mm
Flyer Pipe Bevel Cutting Machine Exact Pro Series 220

DOWNLOAD PDF
Pipe Bevel Cutting Machine Exact Pro Series 220 Advantages
Exact Pipe Saw vs Angle Grinder

Time is money

The Exact Pipe Saw makes 10 clean cuts in the same time it takes an angle grinder to make an imprecise cut.

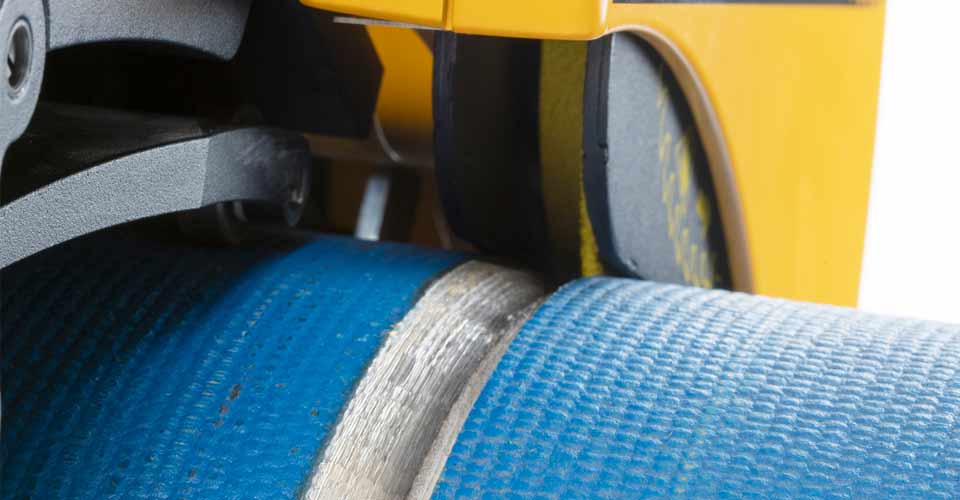

Perfect bevel result

With the renewed cutting depth adjustment and the best diamond
disc on the market, this machine cuts and bevels pipes in one process.
Perfect Bevel

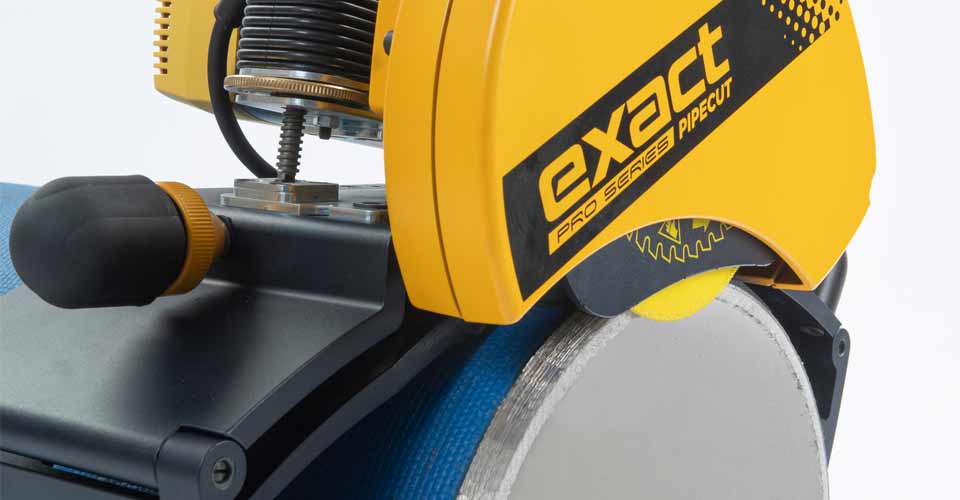

Safe Cutting and Beveling

Extremly safe and easy to use

The Exact Pipe Saw is an extremly easy
tool to use and requires minimal layout and set up.

Matching it
Exact Cut+Bevel Diamond Disc 140
Exact Cut+Bevel Diamond Disc 140
Designed to cut and bevel cast iron and plastic pipes in one process. It is equipped with heavy duty diamonds.

Cut+Bevel Disc
