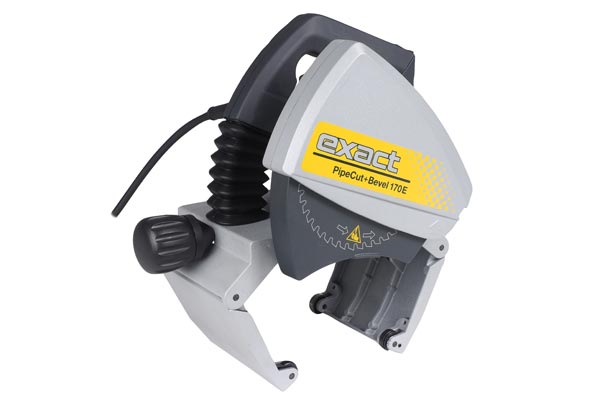

Portable Pipe Cutting & Beveling Machine Exact 170CB

Portable Pipe Cutting and Beveling Machine

Exact 170E

Cuts and bevels iron cast pipes in one process
Can be used with all saw blades
Range of use: OD 0,59" - 6,69" (15-170 mm)
Also compatible with standard saw blade for normal cuts
Perfect 15° bevel

Item number: RG300043

Request Online Live Demo

Product description
Technical details
Price includes
Downloads

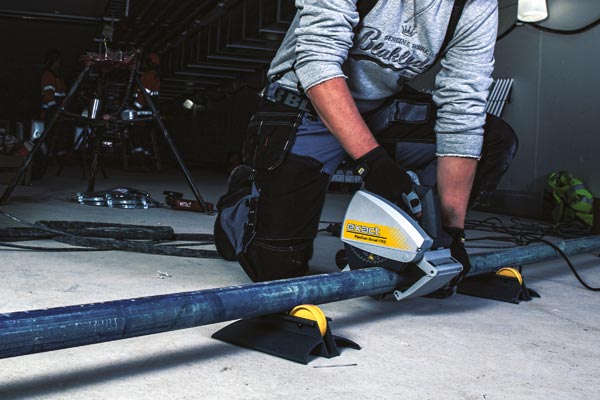

The portable pipe cutting and beveling machine 170E does something that a portable power tool has never done before: Cuts and bevels cast iron pipes in one process due to the cleverly designed diamond disc, you can adjust it to make correct 15 degree bevel to all commonly used pipe dimensions.

When you need to connect pipes with socket joints the portable pipe cutting and beveling machine 170E saves time and money and prevents any leaks in the connected pipes. It is suitable also for PVC and other plastic pipes.

Pipe Cutting and Beveling Machine Exact 170E

Range of use

OD 0,6" - 6,7" (15-170 mm)

Max. wall thicknes

0,31" (8 mm) steel, 0,55" (14 mm) plastic

Weight

5,7 kg

Voltage

220 - 240 V

No-load speed

1.600 - 3.500 rpm

ø Blade

140 mm

Mounting bore

62 mm

Exact CB170E
Cut+Bevel Diamond disc
Shoulder bag
4 x pipe support
Insctructions
Allen keys 5 mm & 2 mm

Flyer Portable Pipe Cutting and Beveling Machine Exact 170E

DOWNLOAD PDF

Portable Pipe Cutting and Beveling Machine Exact 170E Advantages

Time is money

The Exact Pipe Saw makes 10 clean cuts in the same time it takes an angle grinder to make an imprecise cut.

Cut and Bevel in one process

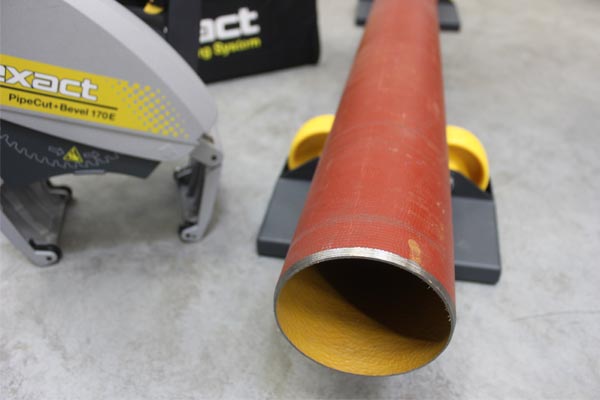

Perfect cut and 15° bevel in one step

Extremly safe and easy to use

The Exact Pipe Saw is an extremly easy
tool to use and requires minimal layout and set up.

Matching it

Exact Cut+Bevel Diamond Disc 140

Designed to cut and bevel cast iron and plastic pipes in one process. It is equipped with heavy duty diamonds.

Cut+Bevel Disc

Exact Pipe Support
4 pcs.

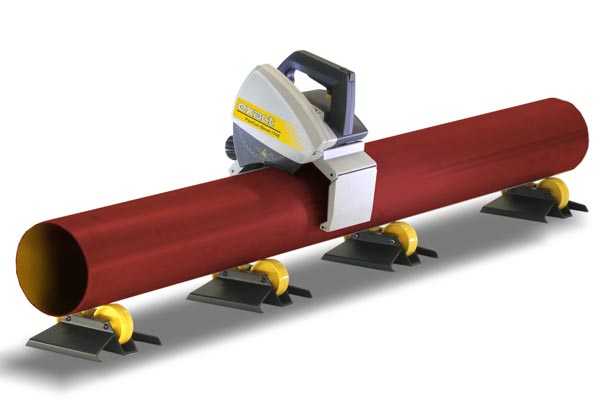

4 Pipe Supports for easy pipe handling and cutting including carrying bag

Pipe Support 4pcs
