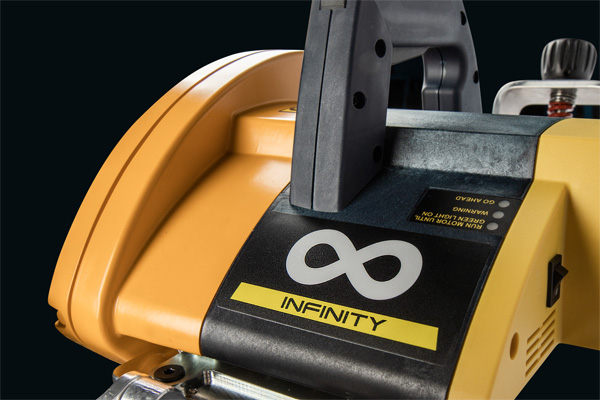

Pipe Cutting Machine Exact Infinity
Pipe Cutting Machine Exact Infinity
Pipe Cutting Machine Exact Infinity
Infinity breaks the boundaries of pipe cutting
- Range: 460 - 1.850 mm OD
- Fast setup
- High cutting speed
- Single operator work
- For all materials
Item number: RG300100
Request Online Live Demo

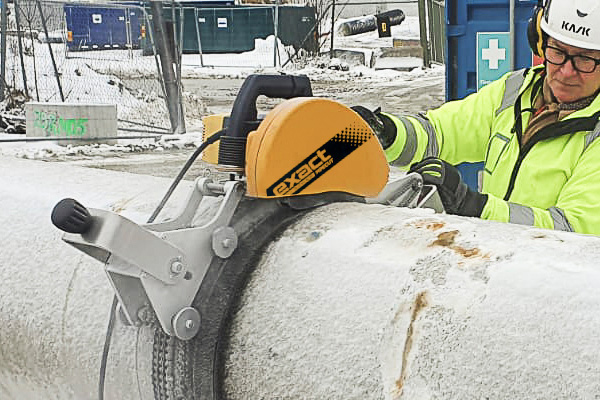

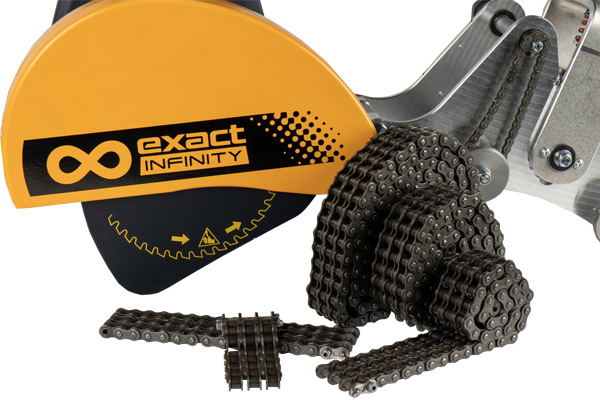

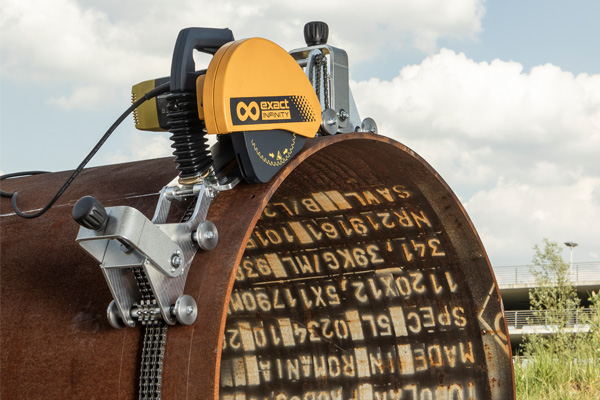

The New Exact product, Infinity, is as the name hints, pipe cutting without boundaries in terms of cutting capacity for pipe outside diameter. You can basically cut all pipe sizes (outside diameter) from 460 mm to 1.850 mm (18”-73”). Exact Infinity is a completely new type of pipe cutting system, that unlike the other exact models, uses chain type of gripping mechanism.
Thanks to this innovative method, the boundaries of pipe cutting diameter limitations are no longer an issue. Infinity is also available as a Cut+Bevel option for cutting and beveling cast iron & plastic pipes in one process.
Pipe Cutting Machine Exact Infinity
Range of use
OD 18 - 73" (460 - 1.850 mm)
Max. wall thicknes
0,8" (20 mm) steel, 2" (50 mm) plastic, 0,8" (20 mm) iron
Voltage
220 - 240 V
Power
2.500 W
ø Blade
140 mm, 165 mm, 180 mm, 190 mm
Mounting bore
62 mm
Weight
16,5 kg
- Pipe Cutting Machine Exact Infinity with cutting blade
- 2 pcs. Shoulder Bags
- Tensioner device
- Tensioner device with crank
- Chain segments
- Operating instructions
- Allen keys
YouTube
Your privacy settings on this website prevent the playing of YouTube videos!Please allow viewing of YouTube in the FUNCTIONAL group.
ALLOW YOUTUBE
Further information on data protection can be found in our Privacy Policy.
Pipe Cutting Machine Exact Infinity Advantages
Pipe cutting up to 1.850 mm
Cutting capacity for pipe outside diameterfrom 460 mm to 1.850 mm (18” – 73”).
Cutting and Beveling
Infinity is also available as a Cut+Bevel option for cuttingand beveling cast iron & plastic pipes in one process.
Matching it
Exact Saw Blade Cermet
140
Blade with ceramic alloy tips for heavy duty applications, especially for cutting stainless steel.Cermet 140
Exact Saw Blade TCT
140
Blade with tungsten carbide tips for general use. Suitable for cutting steel, copper, aluminum and plastics. TCT 140
Exact Cutting Disc Diamond X140
Heavy duty special diamond blade only to be used for cutting cast iron and ductile pipes.Diamond X140
