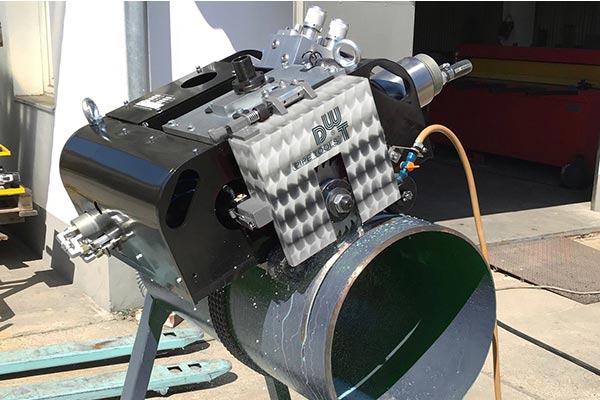

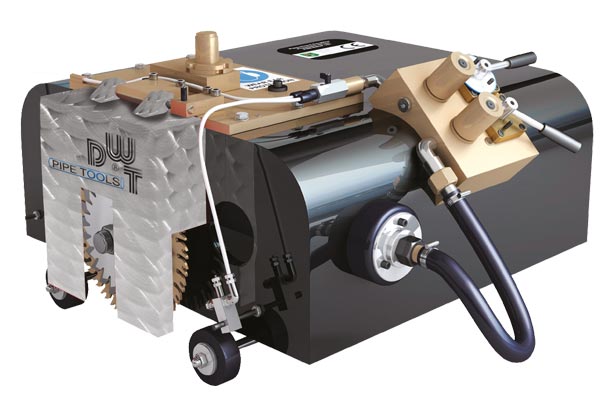

Pipe cutting and beveling machine

Type CPC-B

  • Range: 150 - 7.010 mm OD
  • Pipe wall thickness: max. 50 mm
  • Compound bevel angles, J prep, U prep
  • Out-of-round compensation is unneccesary
  • Two-speed drive gearbox with adjustable speed control and reverse gear





Request Online Live Demo
Available in Hydraulic and Pneumatic options, the machines will cut and bevel most machinable materials, including carbon steel, stainless steel, ductile iron, cast iron, and most other alloys without spark or flameThe heavy duty chain tensioning mechanism, encased in a high strength alloy frame provides the necessary rigidity and strength for cutting the pipe at the highest travel speed possible.
The frame of the machine has six wheel posi-tions to better follow the radius of the pipe and allow the radius of the pipe and allow tracking accuracy on a 36″ pipe of better than 0,3 mm. The machine is equipped with a two speed drive gearbox, which provides positive movement of the machine around the pipe in all kinds of pipe cutting conditions. No out-of-round com-pensation is needed as the machine follows the pipe’s outside diameter.
Pipe Cutting and Beveling Machine CPC-B

Weight
235 kg (pneumatics) 216 kg (hydraulics)
Standard working range
8 - 72" (203 - 1.828 mm)
Max. working range*
6 - 276" (150 - 7.010 mm)
Max. wall thickness
2" (50 mm)
Power
2,75 kW (pneumatics) 4 kW (hydraulics)
Cutting speed
Up to 60 mm per minute
Factory tolerance
+0,5 mm when used optional chain guide
* longer chains or wheel kits are needed
Flyer Pipe Cutting and Beveling Machine CPC-B

DOWNLOAD PDF

YouTube

Your privacy settings on this website prevent the playing of YouTube videos!
Please allow viewing of YouTube in the FUNCTIONAL group.

ALLOW YOUTUBE
Further information on data protection can be found in our Privacy Policy.
The hydraulic driven pipe cutting and beveling machine is designed for cutting heavy wall, high alloy pipes or particularly tough steel applications. The closed loop hydraulic system ensures proper lubrication is applied to the drive motors, which extends the life of the machine. The dual hydraulic motors are infinitelyadjustable and deliver consistent horsepower to the cutting blades and drive motors. Two hydraulic motors drive the machine. The 4 KW hydraulic motor coupled to the heavy duty transmission rotates the cutting blades up to 76 RPM. The 1 KW motor connected to the two speed transmission moves the machine around the pipe. Due to the extreme performance of the machine, the hydraulic version must be used with a Power Pack capable of delivering 50 ltr/min at 100 bar pressure in order to achie-ve maximum results. To cut very thick walled pipes multiple passes may be required. In order to maintain the same degree of accuracy a guide chain must be used in these situations. For pipe OD > 36“ (914 mm) it is also recommended for high return accuracy and for OD > 48“ (1219 mm) it is generally recommended. These can be supplied as stan-dard up to 63″ (1600 mm). For larger pipes sui-table chain kits can be purchased.
The hydraulic driven pipe cutting and beveling machine is designed for cutting heavy wall, high alloy pipes or particularly tough steel applications. The closed loop hydraulic system ensures proper lubrication is applied to the drive motors, which extends the life of the machine. The dual hydraulic motors are infinitelyadjustable and deliver consistent horsepower to the cutting blades and drive motors. Two hydraulic motors drive the machine. The 4 KW hydraulic motor coupled to the heavy duty transmission rotates the cutting blades up to 76 RPM. The 1 KW motor connected to the two speed transmission moves the machine around the pipe. Due to the extreme performance of the machine, the hydraulic version must be used with a Power Pack capable of delivering 50 ltr/min at 100 bar pressure in order to achie-ve maximum results. To cut very thick walled pipes multiple passes may be required. In order to maintain the same degree of accuracy a guide chain must be used in these situations. For pipe OD > 36“ (914 mm) it is also recommended for high return accuracy and for OD > 48“ (1219 mm) it is generally recommended. These can be supplied as stan-dard up to 63″ (1600 mm). For larger pipes sui-table chain kits can be purchased.
The pneumatic driven pipe cutting and beveling machine is an excellent tool for both field and shop work. It is best usedfor cutting pipes in explosive environments such as refineries or on pipelines conveying naturalgas, crude oil or crude oil by-products. Machine speed and blade RPM are controlled by means of two metering valves located on the control block. Airflow to the main drive motor andthe blade motor can be shut off simultaneously with the start/stop control valve, located on the control block. Two highly reliable, heavy duty pneumatic air motors drive the machine. The 2,75 KW motor coupled to the heavy duty transmission rotates the cutting blades up to 71 RPM. The 0,56 KW motor connected to the two speed transmission moves the machine around the pipe. Beveling blades are available in various conf-gurations such as 30°, 37.5° and 45° beveling angle, as well as “U” joint and “J” prep. Due to the extreme performance of the Machine, the pneumatic driven version requires a compressor capable of delivering a minimum of 8 bar (g) at 4000 ltr/min in order to achieve maximum results.
