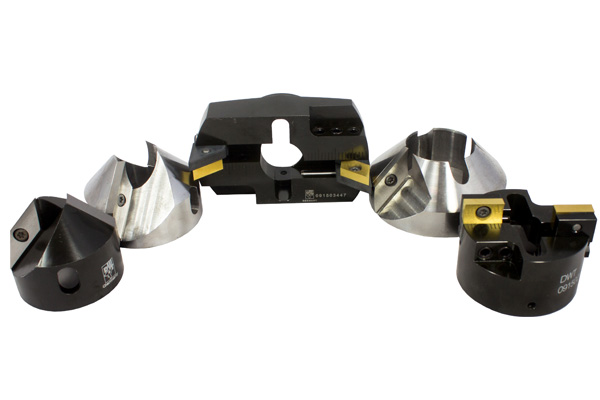

Tool holders for pipe beveling machine MF3iw
Tool holders for pipe beveling machine MF3iw
Tool holders for pipe beveling machine MF2iw
Tool holders for pipe beveling machine MF2iw
Tool holders for pipe beveling machine MF3iw
Tool holders for pipe beveling machine MF2iw

Tool holders for MF3iw

  • Working range: 16 - 101,6 mm
  • Easy and safe to use
  • Corrosion Protected
  • Highest Quality
  • Made in Germany


 DWT PipeTools


Request Online Live Demo

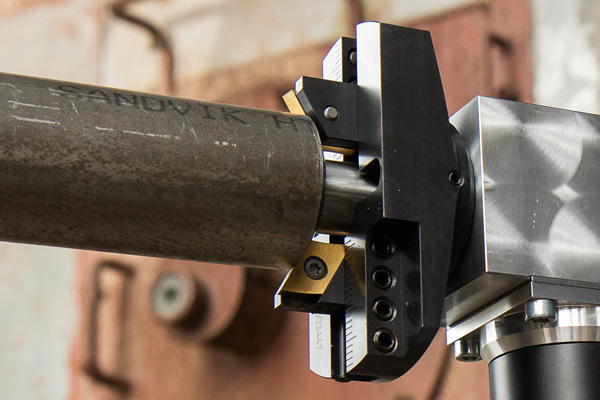

Each tool holder has two radial grooves, which are used to insert HSS- blades or tool tip holder and attached manually to the pipe diameter.
Tool holder 45°, ID 16 mm - OD 56 mm
Tool holder 45°, ID 25 mm - OD 66 mm
Tool holder 45°, ID 40 mm - OD 82 mm
Tool holder for working range ID 16 - OD 62 mm
Tool holder for working range ID 25 - OD 101,6 mm
Flyer Tool Holders for Pipe Beveling Machine MF3iw

DOWNLOAD PDF

Product overview

Item No.
Description
Range ID-OD
Bevel Angle
091502166
Tool holder
16 - 62 mm
Determined by insert holder
091503447
Tool holder
25 - 114,3 mm
Determined by insert holder
010007080
Pipe cutter
16 - 56 mm
45°
010007079
Pipe cutter
25 - 66 mm
091501107
Pipe cutter
40 - 82 mm
45°
091501113
Pipe cutter
16 - 56 mm
091501114
Pipe cutter
25 - 64 mm
091501102
Pipe cutter
25 - 58 mm
30°
091501104
Pipe cutter
40 - 104 mm
091501103
Pipe cutter
40 - 78 mm
30°
091501101
Pipe cutter
16 - 50 mm
30°
091501112
Pipe cutter
70 - 103 mm
30°
Matching it
Pipe Beveling Machine MF3iw
Pipe Beveling Machine MF3iw
Pipe Beveling Machine with internal clamping.
Working Range ID-OD:
0,984 - 4,488" (25-114 mm)

MF3iw
Inserts Holders Pipe Beveler
Inserts Holders
All holders are made in Germany and produced of high-quality tools steel.


Insert Holders
Inserts Pipe Beveler
Inserts
Double-sided TiN inserts provide low costs due to longevity and less heat development

Inserts
