Tool holders for pipe beveler MF3-R

Tool holders for MF3-R

Perfect Weld Preparation
Rigid Holder
Corrossion Protected
Highest Quality
Made in Germany

Request Online Live Demo

Product description
Specifications
Downloads

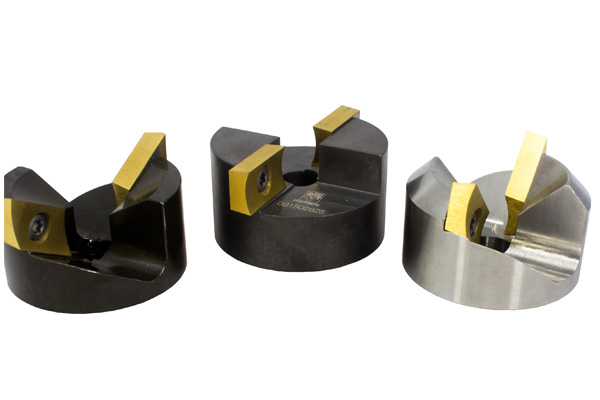

For the preparation of pipes, several tools are available. Following standard tool holders are available for this machine:

Tool holder 0° with tool tips out of HSS for weld seam form I
Tool holder 30° with tool tips out of HSS for weld seam form V
Tool holder 45° with tool tips out of HSS for weld seam form V

Tool holder 0°, ID 5 mm - OD 45 mm
Tool holder 30°, ID 12 mm - OD 45 mm
Tool holder 45°, ID 8 mm - OD 32 mm
Special tool holder

Flyer Tool Holders for Pipe Beveler MF3-R

DOWNLOAD PDF

Product overview

Item No.

Range ID-OD

Bevel Angle

091502825

5 - 45 mm

0°

091502824

12 - 45 mm

30°

091502999

8 - 32 mm

45°

Matching it

Pipe Beveler MF3-R

Pipe Beveler with outside clamping.
Working Range ID-OD: 0,354-1,752" (12-44,5 mm)

MF3-R

Inserts

Double-sided TiN inserts provide low costs due to longevity and less heat development

Inserts

Inserts Holders

All holders are made in Germany and produced of high-quality tools steel.

Insert Holders
