Clamping range OD-OD:
0,472-1,752"

  • Working Range ID-OD: 0,354 - 1,752" (9-44,5 mm)
  • Pipe wall thickness: max. 10 mm
  • Perfect pipe beveling and pipe edge preparation
  • Spark-free and low noise
  • High repeatability


 DWT PipeTools Made in Germany  DWT PipeTools Made in Germany  DWT PipeTools Made in Germany



Request Online Live Demo

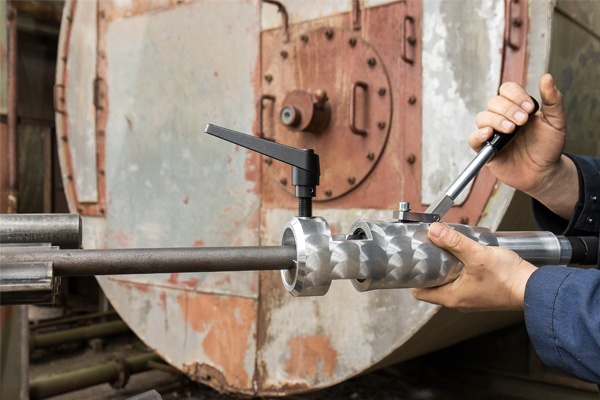

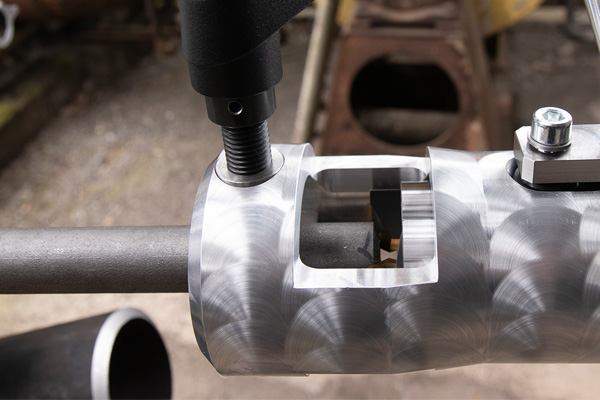

The MF3-R is used for the preparation of pipe ends, i.e. to cut edges of individual pipes or membrane walls. Because of its small dimension it is particularly suitable for the preparation inside membrane wall ports.
The MF3-R can optionally be equipped with a pneumatic or an electric motor.

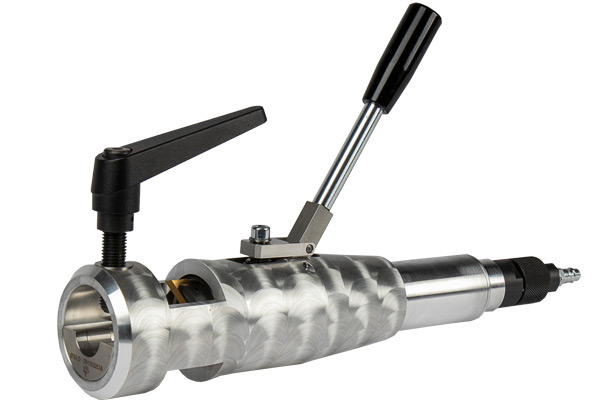

Pipe Beveler MF3-R

Working range ID-OD
0,354" - 1,752" (9 - 44,5 mm)
Clamping range OD-OD
0,472" - 1,752" (12 - 44,5mm)
Max. wall-thickness
0,393" (10 mm)
Feed
0,590" (15 mm)
Weight with pneumatic motor
4,8 kg
Weight with electric motor
6,0 kg
Weld prep
facing, V-prep
Materials
steel, stainless steel, duplex, high-alloyed
Tooling
tool bits, TiN inserts, custom bits
Body
lightweight housing

MF3-R with pneumatic motor

Power
850 W (1,2 HP)
Air pressure
6 bar (87psi)
Air consumption
0,96 m³/min (33,9 cfm)
Air hose connection
1/4"
Features
speed control

MF3-R with electric motor

Power consumption
1.200W (110V/230V)
Features
speed adjustment


Flyer Pipe Beveler MF3-R

DOWNLOAD PDF

Product overview

Item No.
Description
091502800
Pipe Beveler MF3-R with pneumatic motor
091503676
Pipe Beveler MF3-R with electric motor 230V
091506475
Pipe Beveler MF3-R with electric motor 120V


YouTube

Your privacy settings on this website prevent the playing of YouTube videos!
Please allow viewing of YouTube in the FUNCTIONAL group.

ALLOW YOUTUBE
Further information on data protection can be found in our Privacy Policy.
Pipe Beveler MF3-R Advantages
Maximum Productivity

Maximum Productivity

Special developed inserts as cutting tools
can be used for all types of beveling.

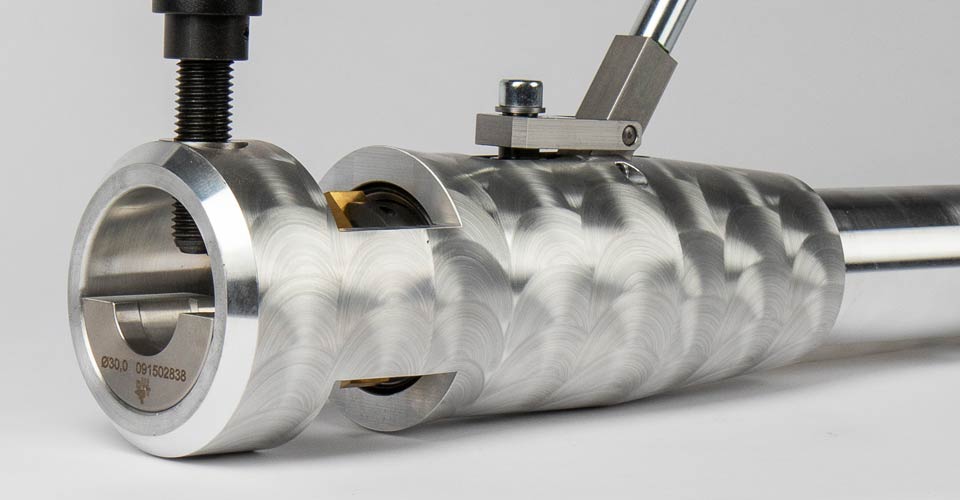

Ergonomic

Due the use of aluminium alloys the machine
has a low weight and can be easily operated by one person.
Ergonomic
Tooling

Various Tools

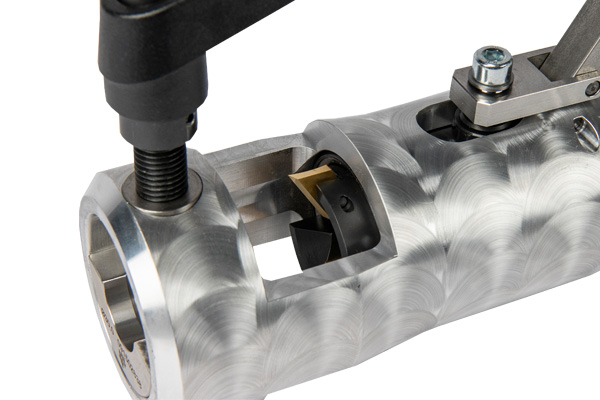

Tool bits, insert holders and tools holders  with special tools can be used for perfect weld edge preparation.
Matching it
Inserts Pipe Beveler
Inserts
Double-sided TiN inserts provide low costs due to longevity and less heat development

to Inserts
Inserts Holders Pipe Beveler
Inserts Holders
All holders are made in Germany and produced of high-quality tools steel.


to Insert Holders
