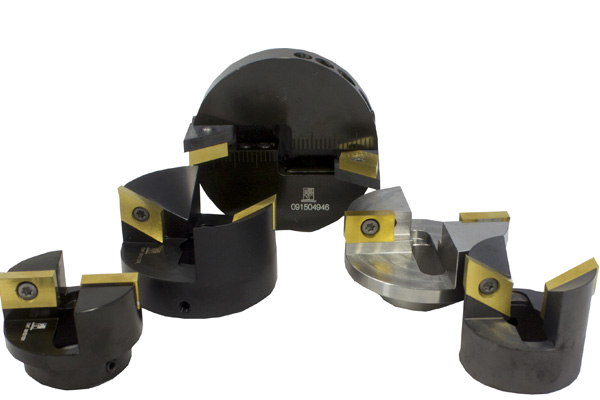

Tool holders for pipe beveler MF3-25 XL

MF3-25XL - Tool holders

Perfect Weld Preparation
Rigid Holder
Corrosion Protected
Highest Quality
Made in Germany

Request Online Live Demo

Product description
Specifications
Downloads

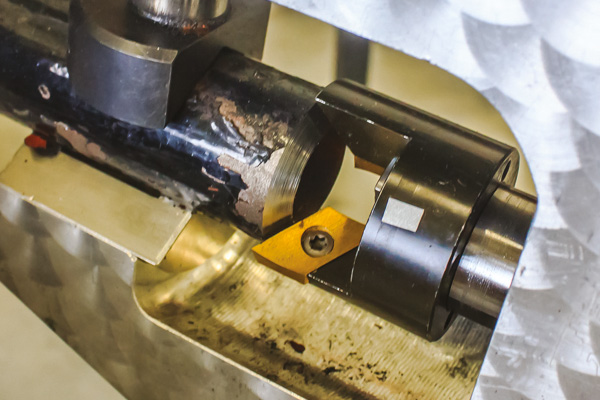

The tool holders have two radial grooves to insert different HSS blades or tool tip holder, that need to be adjusted manually regarding the pipe diameter.
For the standard blade holder (Article - no.: 09150 2121) following range of application applies:

Outer preparation Ø15mm internal- Ø63, 5mm external
Inner preparation starts at approx. Ø26mm internal

Tool holder 0°, ID 12 mm - OD 44,5 mm
Tool holder 0°, ID 12 mm - OD 63,5 mm
Tool holder 30°, ID 12 mm - OD 44,5 mm
Tool holder 30°, ID 12 mm - OD 63,5 mm
Tool holder for working range ID 10 - OD 63,5 mm

Flyer Tool Holders for Pipe Beveler MF3-25 XL

DOWNLOAD PDF

Matching it

Pipe Beveler MF3-25 XL

Portable Pipe Beveler with outside clamping.
Working Range ID-OD: 0,496-2,996" (12,5-76,1 mm)

MF3-25 XL

Inserts

Double-sided TiN inserts provide low costs due to longevity and less heat development

Inserts

Inserts Holders

All holders are made in Germany and produced of high-quality tools steel.

Insert Holders
