Pneumatic Maintenance Unit with Emergency Stop

Compressed air maintenance unit

with emergency stop function and restart protection

Combination of filter, pressure regulator and oiler
Emergency stop function for immediate air shut-off
Restart protection prevents unintended machine start-up
Complies with Machinery Directive 2006/42/EC and harmonised standards
Extends machine service life through dry and lubricated compressed air
Mobile & compact design for flexible use
Includes 3 m compressed air hose with safety quick coupling
Available in 1/2" and 3/4" versions

Request Online Live Demo

Product description
Technical Data
Application Areas
Downloads

The mobile pneumatic maintenance unit is designed for the safe treatment of compressed air and precise control of operating pressure in pneumatic systems and compressor installations. Filters, pressure regulators and oilers are combined in a compact, mobile module, ensuring a reliable and consistent compressed air supply directly at the point of use. An integrated restart protection prevents machines from unintentionally restarting after a pressure drop or interruption in the compressed air supply.

In addition, the emergency stop function allows the air supply to be shut off immediately, depressurising connected components and enabling safe intervention. The unit is mobile, compact and ideally suited for service, maintenance and temporary pneumatic workstations in industrial environments.

Maintenance unit with restart protection

3/4"

1/2"

Item number

1506876

1506839

Inlet pressure

0 - 16 bar

Oil dosage at 1.000 l/min:

ca. 1-2 drops/Min.

Oil reserve

181 cm³

125 cm³

Oil response limit (at 6 bar)

115 l/min

140 l/min

Flow rate

115 - 13.000 l/min

140 - 5.000 l/min

Pneumatic systems
Compressor systems
Mobile service and maintenance work
Temporary pneumatic workstations
Industrial and workshop environments

Flyer Mobile Pneumatic Maintenance Unit

DOWNLOAD PDF

Mobile Pneumatic Maintenance Unit

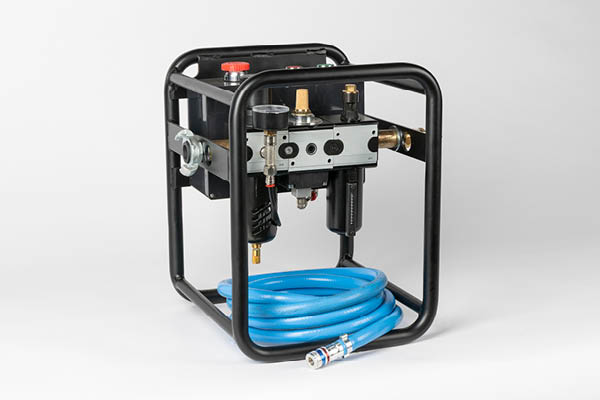

Compact mobile maintenance unit

The mobile pneumatic maintenance unit combines filter, pressure regulator and oiler in a robust, transportable steel frame.

Robust design for mobile use

The impact-resistant protective frame and compact design ensure safe operation on construction sites and during service work.

Mobile Pneumatic Maintenance Unit

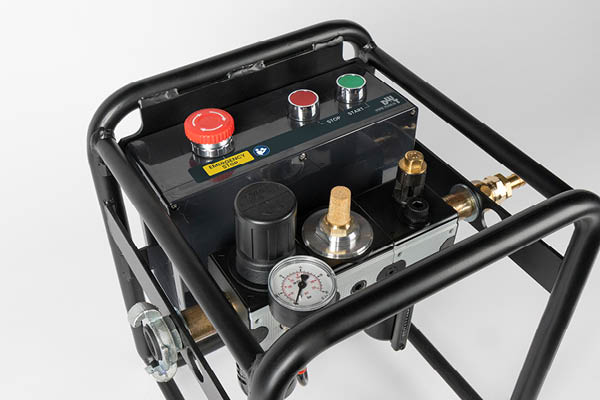

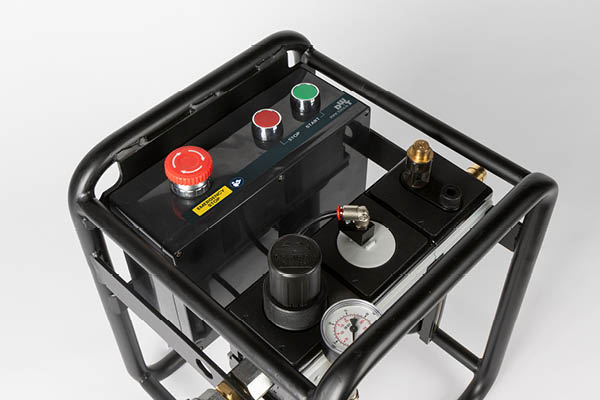

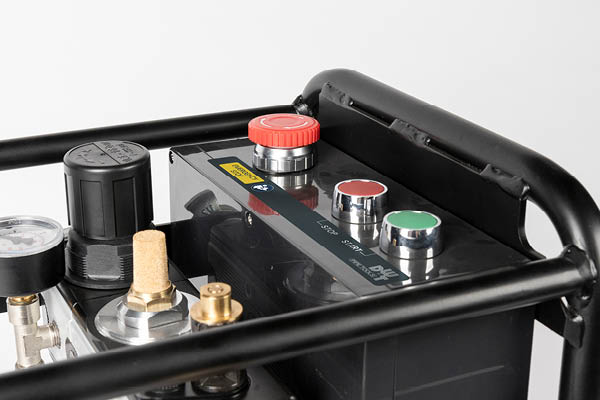

Integrated safety and easy operation

Emergency stop, start/stop buttons and clearly arranged controls enable safe and controlled operation directly at the point of use.
