Flange Leveler digital

with protractor

  • Measuring range from 0° - 90°
  • Resolution of 0.05° (1,0 mm/M)
  • Accuracy of ± 0.05° at 0° & 90°
  • Auto-reverse reading of LCD Display



 DWT PipeTools

Item no. 1350031

Request Online Live Demo

The Flange Leveler digital can be used for bolt holes on flanges between 16-32 mm. This prevents loose parts from being positioned incorrectly.
 The Flange Leveler digital for aligning and centering flanges in pipeline construction.
DWT Flange Leveler digital

Dimensions
400 x 50 x 23 mm
Bolt length
75 mm
Bolt distance
60 - 260 mm
Measurable inclination
+/- 90°

  • Pipeline construction
  • Boiler & tank construction
  • Flange repair
  • Flange welding
Flyer Flange Leveler digital

DOWNLOAD PDF

Flange Leveler

Flange Leveler

Bolt distance: 60 - 260 mm
Bolt length: 75 mm




to Flange leveler

Hydraulic Flange Spreader

Hydraulic Flange Spreader
HS20-120

Spread force: 2 to
Spreading width: 120 mm


to Hydraulic

Flange bolt cutting saw

Flange bolt cutting saw

Bolt cutting up to M72

Flange-Ø:
250 - 1.400mm


to Bolt cutting saw

Elbow Spider Clamp ISEC

Elbow Spider Clamp
ISEC

To fix flanges and elbows
Range ID: 2,25 - 20,4"


to ISEC

DWT Flange Leveler Advantages

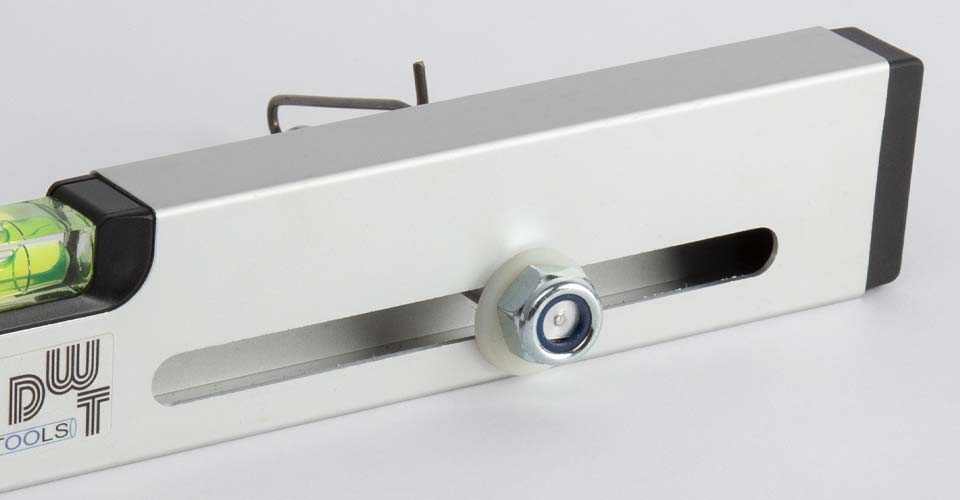

Stepless bolt distance

Stepless Bolt distance

Automatically rotatable display indicator



digital flange leveling

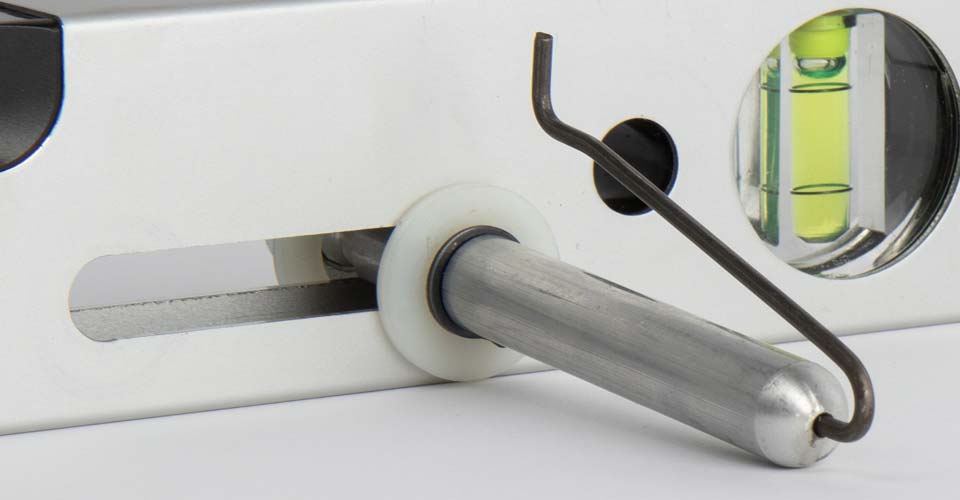

Self Tensioning Springs

Self tensioning springs
