Flange Bolt Cutting Saw

Portable Solution for Stuck Bolts

Cuts flange bolts up to M72
Cold cutting – spark-free operation
Lightweight & modular – easy to transport and handle
Safe and simple clamping and operation

Product description
Technical details
Price includes

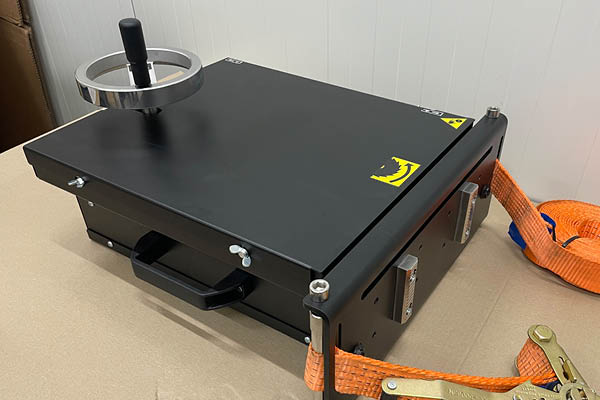

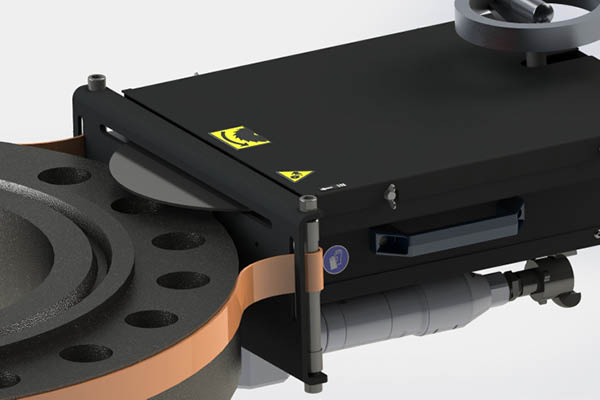

The Flange Bolt Cutting Saw is designed for the fast and safe removal of corroded or seized flange bolts. Instead of using multiple tools like nut splitters with varying head sizes, this single machine handles all bolt sizes up to M72, making it a cost-effective and highly versatile solution. Thanks to its lightweight, modular construction, the machine can be dismantled and carried by a single operator without the need for heavy lifting equipment. The saw is mounted easily around the flange and can be used in horizontal or vertical positions.

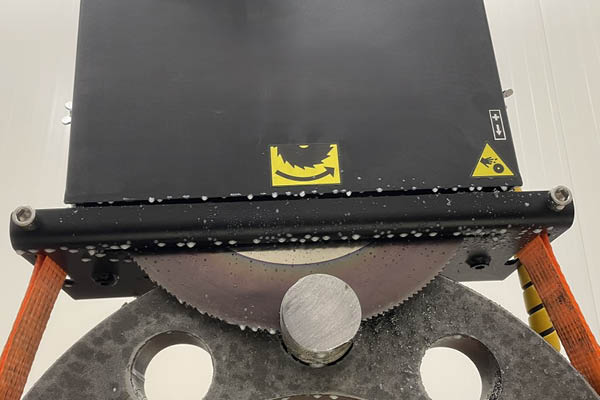

A handwheel-controlled feed system ensures smooth, consistent cutting speed, reducing tool wear and improving cutting performance. Operating at low speed with coolant, the machine provides cold cutting without sparks, making it ideal for sensitive or hazardous environments. It comes equipped with a pneumatic motor and must be used with the Air Safety Device to maintain CE compliance and warranty validity.

Flange bolt Cutting Saw

Blade Diameter

Max Ø 350 mm

Motor

Pneumatic 0,8kW

Blade Speed

47 rpm

Air consumption

1,6m³/min @ 5 bar

Max cutting depth

104 mm

Max bolt size

M72

Max flanges (acc ANSI B16.5)

2500 lbs 12"
1500 lbs 18"
900 lbs 26"
600 lbs 36"
400 lbs 40"
300 lbs 36"

Flange diameter clamping range

Max 1400 mm OD
Min 250 mm OD

Weight

Mounting base 6 kg,
Cutting unit 30 kg,
Total: 36 kg

Machine with motor
HSS Saw blade 1 pc
Clamping system for flanges
CE certification and operation manual
Set of hand tools
Transport box
