perfect pipe marking

  • With graduation and protractor bubble for marking out

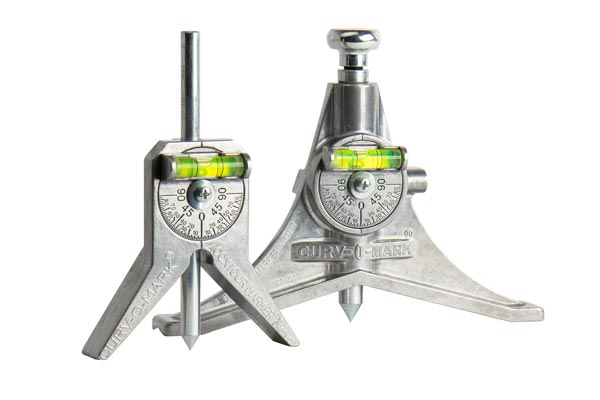

  • Two types available for pipe diameter 1/2" - 5" and 1" - 24"
  • Adjustable protractor bubble with graduation
  • Hardened centering pin


 DWT PipeTools


Request Online Live Demo

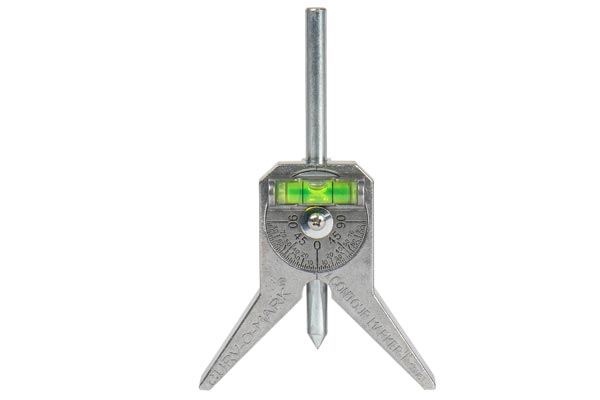

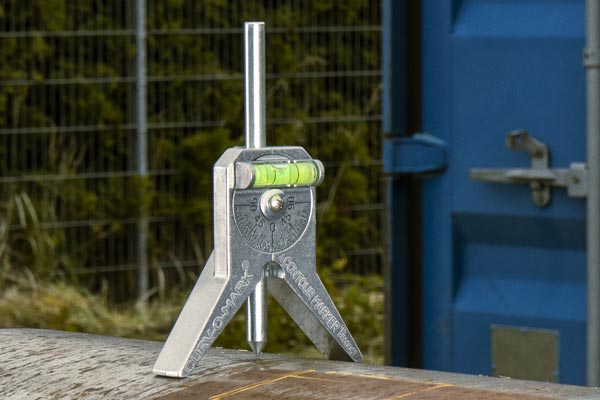

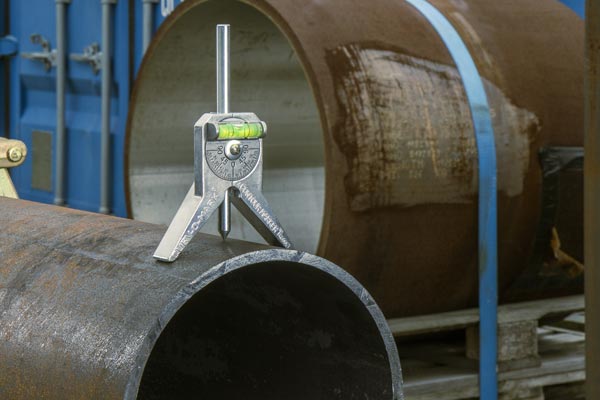

The DWT Centering Head can be used to determine the exact position of a tube (top / bottom) in the simplest way.
It can also be used to find any given point at an angle from the head of the pipe. The centering head can be used on all pipes with a diameter from 1/2“ to 24“.
Flyer Centering Head for Pipes

DOWNLOAD PDF

Product overview

Part No.
Description
Range
Weight
 RG350032
Centering Head DWT
1/2 - 5"
0,30 kg
 RG350190
Centering Head XL DWT
1 - 24"
0,60 kg
