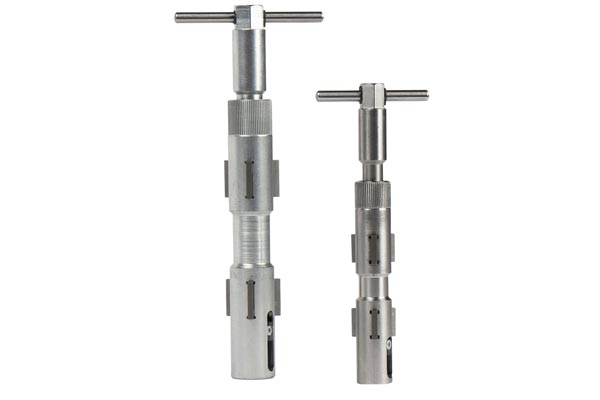

Internal Pipe Alignment Clamp

for pipe and flanges

  • Suitable for clamping pipe or flange
  • Range ID: 0,5 - 2,5"
  • Stainless Steel Contact Points
  • Can be used on all types of materials

 DWT PipeTools


Request Online Live Demo
The manual internal clamping system (IC) is suitable for clamping pipe to pipe or flange. It covers a range from 15 mm (0.5“) to 64 mm(2.5“), with automatic diameter compensation.
The contact points of the systems are made of stainless steel, which means that both mild steel and stainless steel pipes can be centred.
Flyer Internal Pipe Alignment Clamp

DOWNLOAD PDF

Product overview

Part No.
Type
Range ID
Weight
 RG350191
IC1519
0,59-0,75" (15-19 mm)
0,2 kg
 RG350192
IC1620
0,63-0,79" (16-20 mm)
0,2 kg
 RG350193
IC1925
0,75-0,98" (19-25 mm)
0,25 kg
 RG350194
IC2432
0,94-1,26" (24-32 mm)
0,5 kg
 RG350195
IC3140
1,22-1,57" (31-40 mm)
0,5 kg
 RG350196
IC3852
1,50-2,05" (38-52 mm)
1,25 kg
